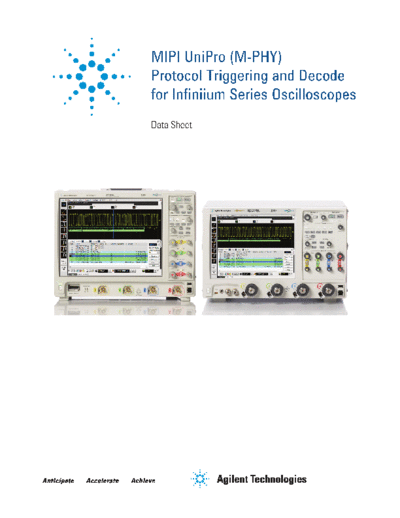

Image preview - the first page of the document



>> Download MIPI UniPro (M-PHY) Protocol Triggering and Decode for Infiniium Series Oscilloscopes 5991-1595EN c20140528 [8] documenatation <<

Text preview - extract from the document

MIPI UniPro (M-PHY)
Protocol Triggering and Decode
for Infiniium Series Oscilloscopes
Data Sheet
MIPI UniPro (M-PHY)

MIPI (Mobile Industry Processor Interface) serial buses are the backbone for communication in mobile products. The serial
bus interface provides content-rich points for debug and test. However, since these protocols transfer bits serially, using
a traditional oscilloscope has limitations. Manually converting captured 1's and 0's to protocol requires significant effort,
can't be done in real-time, and includes potential for human error. Also, traditional scope triggers are not sufficient for
specifying protocol-level conditions.



Extend your scope capability with Agilent's MIPI UniPro            The following are the MIPI UniPro protocols and
(M-PHY) triggering and decode application. This application        features that will be supported by the application:
makes it easy to debug and test designs that include MIPI
UniPro buses using your Infiniium Series oscilloscope.              1. Support MIPI UniPro v1.41 and v1.60 decode and
                                                                       triggering
