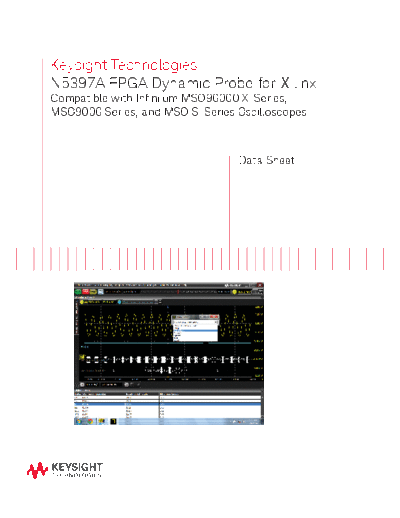

MSO9000A and MSO 9000 H-Series N5397A FPGA Dynamic Probe for Xilinx - Data Sheet 5989-1848EN c20140915 [11]


>> Download MSO9000A and MSO 9000 H-Series N5397A FPGA Dynamic Probe for Xilinx - Data Sheet 5989-1848EN c20140915 [11] documenatation <<

Text preview - extract from the document
Keysight Technologies
N5397A FPGA Dynamic Probe for Xilinx
Compatible with Infiniium MSO90000 X-Series,
MSO9000 Series, and MSO S-Series Oscilloscopes



                                 Data Sheet
02 | Keysight | N5397A FPGA Dynamic Probe for Xilinx - Data Sheet




   The Challenge
                You rely on the insight a MSO (mixed-signal oscilloscope) provides to understand the behavior of your
                FPGA in the context of the surrounding system. Design engineers typically take advantage of the
                programmability of the FPGA to route internal nodes to a small number of physical pins for debugging.
                While this approach is very useful, it has significant limitations.
