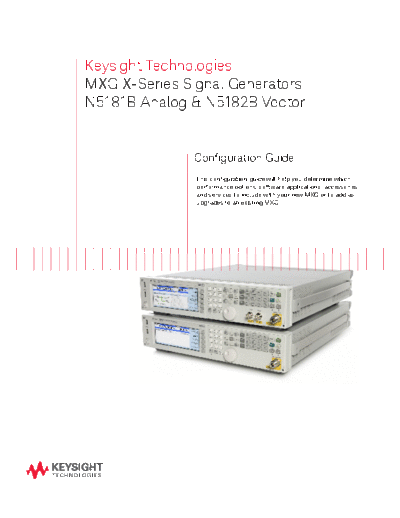

Image preview - the first page of the document



>> Download MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide 5990-9959EN c20140610 [10] documenatation <<

Text preview - extract from the document

Keysight Technologies
MXG X-Series Signal Generators
N5181B Analog & N5182B Vector


              Configuration Guide
               This configuration guide will help you determine which
               performance options, software applications, accessories,
               and services to include with your new MXG or to add as
               upgrades to an existing MXG.
Configure Your MXG X-Series Signal Generator

This step-by-step process will help you configure your MXG signal generator. Tailor the performance to meet your
requirements. For detailed specifications, refer to the MXG signal generator data sheet (5991-0038EN).




N5181B MXG X-Series RF Analog Signal Generator


Configure your new MXG analog signal generator

 Step 1. Select maximum frequency range (required option; frequency range not upgradeable)
 Description                                        Option number          Additional information
 Frequency range from 9 kHz to 3 GHz                N5181B-503             Not compatible with 506
 Frequency range from 9 kHz to 6 GHz                N5181B-506             Not compatible with 503




 Step 2. Choose connector configuration
 Description                                        Option number          Additional information
 Move all connectors to rear panel                  N5181B-1EM             Not upgradable




 Step 3. Choose performance enhancement options
 Description                                        Option number          Additional information
 AM, FM, phase modulation                           N5181B-UNT
 Low phase noise                                    N5181B-UNX             Not compatible with UNY, not upgradable
 Enhanced low phase noise                           N5181B-UNY             Not compatible with UNX, not upgradeable
 Fast switching                                     N5181B-UNZ
 Narrow pulse modulation                            N5181B-UNW
 Pulse train generator                              N5181B-320             Requires UNW
 Multifunction generator                            N5181B-303
 Instrument security and removable memory card      N5181B-006
 High output power                                  N5181B-1EA
 Low specified power (<-110 dBm)                    N5181B-1EQ
 Flexible reference input (1-50 MHz)                N5181B-1ER
 Expanded license key upgradability                 N5181B-099             Option 099 is recommended for anyone considering
                                                                           future upgrades. Option 099 simplifies the upgrade
                                                                           process by enabling upgrades via a license key for
                                                                           Options 1EA, 1EQ, and UNZ. Without Option 099,
                                                                           upgrades for these options require purchase and
                                                                           installation of hardware in a field retrofit kit.
                                                                           For more information, visit
                                                                           www.keysight.com/find/SSupgrades.




                                                                 2
Step 4. Choose accessory and documentation options
Description                                                                       Option number
Rack slide kit                                                                    1CR012A
Front handle kit                                                                  1CN006A
Rack mount flange kit                                                             1CM010A
Rack mount flange kit with front handles                                          1CP004A
Hard transit case                                                                 N5181B-AXT
CD-ROM containing English documentation set                                       N5181B-CD1
Service documentation, assembly and component                                     N5181B-0BW




Step 5. Choose warranty and calibration options
Description                                                                       Option number
Return-to-Keysight warranty, 3 years                                              Standard
Return-to-Keysight warranty, 5 years                                              R-51B-001-5C
Onsite warranty
