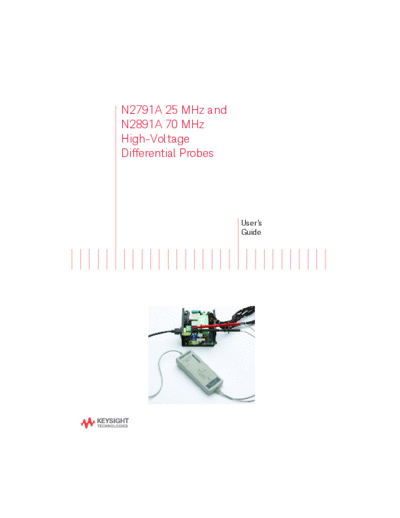

Image preview - the first page of the document
N2791-97003 N2791A N2891A High-Voltage Differential Probes User_2527s Guide [32]


>> Download N2791-97003 N2791A N2891A High-Voltage Differential Probes User_2527s Guide [32] documenatation <<

Text preview - extract from the document
N2791A 25 MHz and
N2891A 70 MHz
High-Voltage
Differential Probes




                      User's
                      Guide
 Contents



Inspecting the Probe 3
Cleaning the Probe 3
Handling the Probe 3
N2791A/N2891A High-Voltage Differential Probes 4
Contents and Accessory Kits 5
Characteristics 7
Safety Information 9
Using the N2791A High-Voltage Differential Probe 10
Using the N2891A High-Voltage Differential Probe 11
N2791A Plots 12
N2891A Plots 16
Using the Accessories 20
N2791A Performance Verification Procedures 21
N2791A Performance Verification Test Record 23
N2891A Performance Verification Procedures 24
N2891A Performance Verification Test Record 26




2
                                                                       Inspecting the Probe



      Inspecting the Probe
     Inspect the shipping container for damage.
      Keep the damaged shipping container or cushioning material until the contents
      of the shipment have been checked for completeness and the probe has been
      checked mechanically and electrically.
     Check the accessories.
