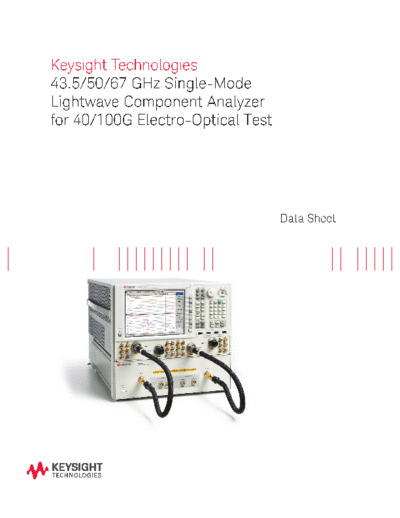

Image preview - the first page of the document



>> Download N4373D Single-Mode Lightwave Component Analyzer for 40 100G Electro-Optical Test - Data Sheet 5991-0527EN c20140604 [24] documenatation <<

Text preview - extract from the document

Keysight Technologies
43.5/50/67 GHz Single-Mode
Lightwave Component Analyzer
for 40/100G Electro-Optical Test




                                   Data Sheet
General Information
    The Keysight's Technologies, Inc. N4373D Lightwave Component Analyzer (LCA), based on the new
    N522xA PNA Microwave Network Analyzer series offers a modulation bandwidth of 43.5/50/67
    GHz which makes it the ideal choice to develop and characterize electro-optical components, for
    40G/100GbE and the upcoming 400G and 1 Tbit/s transmission systems.


    Accuracy
    For these modern optical transmission systems with advanced modulation schemes it is key for the
    electro-optical components to have very flat S21 transfer function in amplitude and delay. This
    performance can be achieved only with electro-optical S-parameter test as provided by the N4373D
    LCA.

    In addition fast, accurate, repeatable and traceable characterization of these electro-optical
    components, like lasers, modulators and detectors and integrated receivers is required, to guarantee
    the performance with respect to modulation bandwidth, jitter, gain, and distortion.

    By optimizing the electrical and the optical design of the N4373D for lowest noise and ripple, the
    accuracy has been improved by more than a factor of 2, compared to the widely used, the 86030A
    50GHz LCA. This increased accuracy improves the yield from tests performed with the N4373D by
    narrowing margins needed to pass the tested devices.

    This advanced design together with temperature-stabilized transmitter and receiver ensures repeatable
    measurements over hours without recalibration.


    Turn-key solution
    The fully integrated "turn-key" N4373D helps reduce time to market, compared to the time-consuming
    development of a self-made setup. In addition you get a fully specified easy transferable and reliable
    test instrument. With guaranteed specifications Keysight takes the responsibility to provide you with
    accurate and traceable test results that can only be achieved in a turn-key solution.


    High productivity
    The N4373D achieves fast measurements by including the N522xA PNA Microwave Network Analyzer.
    A unique new calibration concept significantly reduces setup time to a maximum of several minutes,
    depending on the selected measurement parameters. This results in increased productivity in R&D or on
    the manufacturing floor.

    Using the advanced measurement capabilities of the network analyzer, all S-parameter related
    characteristics of the device under test, like responsivity and 3 dB-cutoff frequency, can be qualified
    with the new N4373D Lightwave Component Analyzer from 10 MHz to 43.5/50/67 GHz.


    Network analyzer
    The N4373D LCA is based on the new N522xA PNA Series network analyzer with an identical and well
    known user interface across all Keysight network analyzers.
General Information (continued)


Key benefits
