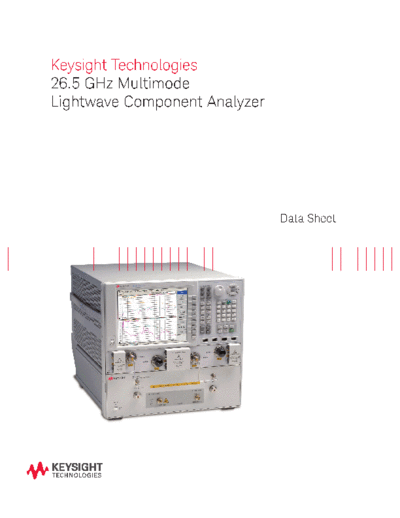

Image preview - the first page of the document



>> Download N4376D 26.5 GHz Multimode Lightwave Component Analyzer - Data Sheet 5991-0440EN c20140603 [18] documenatation <<

Text preview - extract from the document

Keysight Technologies
26.5 GHz Multimode
Lightwave Component Analyzer




                               Data Sheet
General Information
    The Keysight Technologies, Inc. N4376D Lightwave Component Analyzer (LCA) is the instrument of
    choice to test short wavelength 10G Ethernet, Fibre Channel FCx8, FCx10 and FCx16 electro-optical
    components, with up to 26.5 GHz modulation range. The N4376D also supports the test of transmit-
    ter and receivers for optical computer backplanes and optical chip-to-chip connections in high speed
    computers and server applications.

    Modern optical transmission and datacom systems require fast, accurate and repeatable charac-
    terization of the core electro-optical components. These core subcomponents (lasers, modulators
    and detectors) have significant impact on the performance of the transmitter and the receiver with
    respect to modulation bandwidth, jitter, gain, and distortion of the final transceiver.

    For frequency dependent responsivity measurements the N4376D extends opto-electronic
    S-parameter measurements to multimode devices in the 850 nm wavelength range.

    With the latest PNA family of network analyzers, the N4376D guarantees excellent electro-optical
    measurement performance. In addition a unique new calibration concept significantly reduces time
    from powering up the LCA until the first calibrated measurement can be made. This increases
    productivity in R&D and on the manufacturing floor.

    The fully integrated "turnkey" solution reduces time to market, compared to the time-consuming
    development of a self-made setup.

    The electrical and optical design of the N4376D is optimized for lowest noise and ripple. IIn addition,
    this design makes the accuracy independent of the electrical reflextion coefficient. It's the excellent
    accuracy that improves the yield from tests performed with the N4376D, by narrowing margins
    needed to pass the tested devices. Traceability ensures world-wide comparability of test results.

    The advanced optical design together with temperature-stabilized transmitter and receiver ensures
    repeatable measurements over days without recalibration.

    Using the advanced measurement capabilities of the network analyzer, all S-parameter related
    characteristics of the device under test, like responsivity, ripple and 3 dB-cutoff frequency, can be
    qualified with the new N4376D Lightwave Component Analyzer from 10 MHz to 26.5 GHz.



    The network analyzer
    The N4376D is based on the new 2- and 4-port N5222A PNA Series microwave network analyzer
    with an identical and well known user interface across all Keysight network analyzers. Versions
    with configurable test set and bias-T integrated in the network analyzer are available. The High RF
    output power ensures a higher optical modulation index (OMI). This gives you the freedom to change
    between small signal analysis and large signal analysis of your device under test. True mode
    balanced measurements are possible with 4-port, dual source network analyzers.
General Information (continued)
Key benefits
