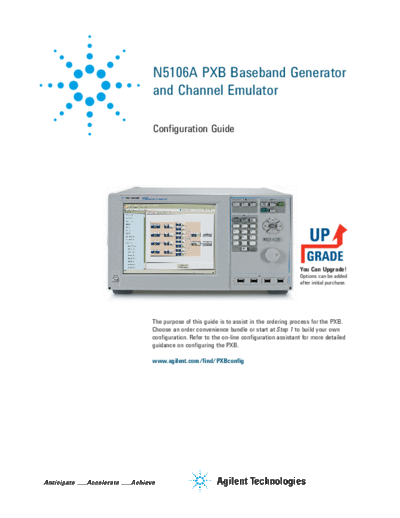

Image preview - the first page of the document



>> Download N5106A PXB Baseband Generator and Channel Emulator - Configuration Guide 5989-8972EN c20131125 [8] documenatation <<

Text preview - extract from the document

N5106A PXB Baseband Generator
and Channel Emulator

Configuration Guide




                                                          You Can Upgrade!
                                                          Options can be added
                                                          after initial purchase.




The purpose of this guide is to assist in the ordering process for the PXB.
Choose an order convenience bundle or start at Step 1 to build your own
configuration. Refer to the on-line configuration assistant for more detailed
guidance on configuring the PXB.

www.agilent.com/find/PXBconfig
Agilent N5106A PXB      Choose an order convenience bundle
baseband generator      Options 2B2, 2B4, and 4B2 are order convenience bundles representing a specif-
and channel emulator    ic set of PXB hardware and firmware options for MIMO baseband generation
                        and channel emulation. Each MIMO bundle option supports internal baseband
bundle configurations   generation with real-time fading, RF fading with PXA/MXA/EXA signal analyzers
                        as RF inputs and EXG/MXG/ESG vector signal generators as RF outputs, and all
                        other valid configurations including baseband summing.

                         Option       Description                              Includes
                         Application bundles
                         2B2          2x2 MIMO bundle                          N5106A, with Options 616, 634,
                                                                               EFP, JFP, QFP
                         2B4          2x4 MIMO bundle                          N5106A, with Options 620, 636,
                                                                               EFP, JFP, QFP
                         4B2          4x2 MIMO bundle                          N5106A, with Options 622, 636,
                                                                               EFP, JFP, QFP
                         185          Global navigation satellite systems      N5106A, with Options 611, 632,
                                      application bundle                       EFP, JFP
                         186          Digital video application bundle         N5106A, with Options 612, 632,
                                                                               EFP, JFP, QFP


                        Requirements and recommendations for using PXB
                        with other instruments
