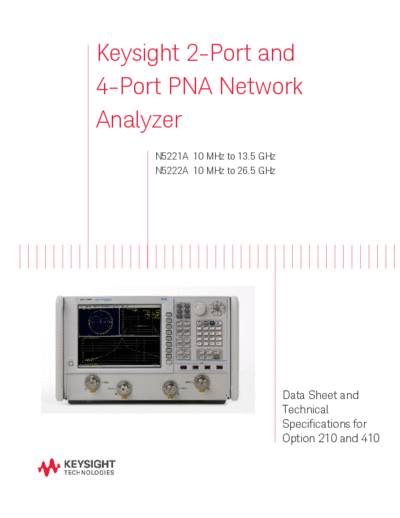

Keysight 2-Port and
4-Port PNA Network
Analyzer
     N5221A 10 MHz to 13.5 GHz
     N5222A 10 MHz to 26.5 GHz




                                 Data Sheet and
                                 Technical
                                 Specifications for
                                 Option 210 and 410
Documentation Warranty
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR
IMPLIED WITH REGARD TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. KEYSIGHT SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, USE, OR PERFORMANCE
OF THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN. SHOULD KEYSIGHT AND THE
USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY TERMS COVERING THE
MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE WARRANTY TERMS IN
THE SEPARATE AGREEMENT WILL CONTROL.



DFARS/Restricted Rights Notice
If software is for use in the performance of a U.S. Government prime contract or subcontract,
Software is delivered and licensed as "Commercial computer software" as defined in DFAR 252.227-
7014 (June 1995), or as a "commercial item" as defined in FAR 2.101(a) or as "Restricted computer
software" as defined in FAR 52.227-19 (June 1987) or any equivalent agency regulation or contract
clause. Use, duplication or disclosure of Software is subject to Keysight Technologies' standard
commercial license terms, and non-DOD Departments and Agencies of the U.S. Government will
receive no greater than Restricted Rights as defined in FAR 52.227-19(c)(1-2) (June 1987). U.S.
Government users will receive no greater than Limited Rights as defined in FAR 52.227-14 (June
1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.




                                                2
Documentation Warranty ............................................................................... 2

DFARS/Restricted Rights Notice .................................................................. 2
 Definitions ......................................................................................................... 5

Corrected System Performance ....................................................................... 6
 System Dynamic Range and Receiver Dynamic Range ................................ 6
 Table 1a. System Dynamic Range and Receiver Dynamic Range,
 N5221A, Option 210, 410 ............................................................................... 7
 Table 1b. System Dynamic Range and Receiver Dynamic Range,
 N5222A, Option 210, 410 ............................................................................... 8
 Corrected System Performance, Option 210, 410 ........................................ 9
 Table 2a. N5221A and N5222A with 85052B Calibration Kit .....................10
 Table 2b. N5221A and N5222A with N4691B
 2-Port Electronic Calibration Module...........................................................11
 Table 2c. N5221A and N5222A with N4433A
 4-Port Electronic Calibration Module...........................................................12

Uncorrected System Performance .................................................................13
 Table 3a. Error Terms (dB), All Ports, Option 210, 410 - Specifications ...13
 Table 3b. Error Terms (dB), All Ports, Option 210, 410 - Typical ...............13

Test Port Output ..............................................................................................14
 Table 4. Frequency Information, Option 210, 410 ......................................14
 Table 5. Maximum Leveled Power (dBm), Option 210, 410 .......................14
 Table 6. Power Level Accuracy (dB), Option 210, 410 ................................15
 Table 7a. Power Level Linearity (dB).............................................................15
 Table 7b. Power Level Linearity (dB) ............................................................15
 Table 8. Power Sweep Range (dB), Option 210, 410 ..................................16
 Table 9. Nominal (Preset) Power (dBm) .......................................................16
 Table 10. Power Resolution and Maximum/Minimum Settable Power .....16
 Table 11. 2nd and 3rd Harmonics at Max Specified Power (dBc) .................16
 Table 12. Non-Harmonic Spurs at Nominal Power (dBc), ..........................17
 Table 13. Phase Noise (dBc/Hz), Option 210, 410 - Typical ......................17

Test Port Input .................................................................................................18
 Table 14. Test Port Noise Floor (dBm) @ 10 Hz IFBW, Option 210, 410 .18
 Table 15. 0.1 dB Receiver Compression at Test Port (dBm) ......................18


                                                               3
 Table 16. Receiver Compression at Test Port Power - Specification ........19
 Table 17. Trace Noise Magnitude (dB rms) ..................................................19
 Table 18. Trace Noise Phase (deg rms) ........................................................20
 Table 19. Reference Level Magnitude, Option 210, 410 - Specification...20
 Table 20. Stability vs. Temperature, Option 210, 410 - Typical .................20
 Table 21. Stability vs. Time, Option 210, 410
