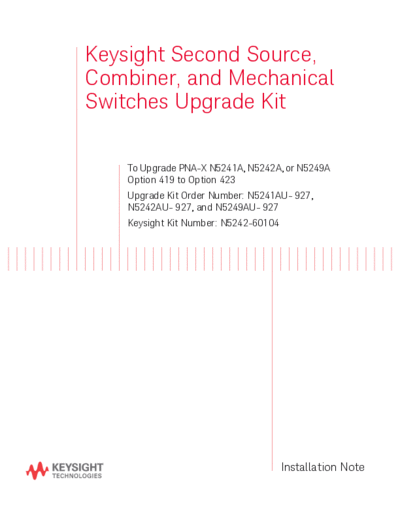

Image preview - the first page of the document
![N5242-90005 Installation Note_252C Second Source_252C Combiner_252C and Mechanical Switches Upgrade Kit To Upgrade Option 41 [15]](/pics/5c4d6f892d192.gif)
>> Download N5242-90005 Installation Note_252C Second Source_252C Combiner_252C and Mechanical Switches Upgrade Kit To Upgrade Option 41 [15] documenatation <<
Text preview - extract from the document
Keysight Second Source,
Combiner, and Mechanical
Switches Upgrade Kit
To Upgrade PNA-X N5241A, N5242A, or N5249A
Option 419 to Option 423
Upgrade Kit Order Number: N5241AU- 927,
N5242AU- 927, and N5249AU- 927
Keysight Kit Number: N5242-60104
Installation Note
Installation Note N5242-90005 1
WARRANTY STATEMENT
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD
TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY
TERMS COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE
WARRANTY TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.
DFARS/Restricted Rights Notice
If software is for use in the performance of a U.S. Government prime contract or subcontract, Software is
delivered and licensed as "Commercial computer software" as defined in DFAR 252.227-7014 (June 1995), or as
a "commercial item" as defined in FAR 2.101(a) or as "Restricted computer software" as defined in FAR 52.227-
19 (June 1987) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of
Software is subject to Keysight Technologies' standard commercial license terms, and non-DOD Departments
and Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in FAR 52.227-
19(c)(1-2) (June 1987). U.S. Government users will receive no greater than Limited Rights as defined in FAR
52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.
Safety Notes
The following safety notes are used throughout this document. Familiarize yourself with each of these notes
and its meaning before performing any of the procedures in this document.
WARNING Warning denotes a hazard. It calls attention to a procedure which, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed beyond a
warning note until the indicated conditions are fully understood and met.
CAUTION Caution denotes a hazard. It calls attention to a procedure that, if not correctly performed
or adhered to, could result in damage to or destruction of the instrument. Do not proceed
beyond a caution sign until the indicated conditions are fully understood and met.
2 Installation Note N5242-90005
Getting Assistance from Keysight
By internet or phone, get assistance with all your test and measurement needs.
Contacting Keysight
Assistance with test and measurements needs and information on finding a local Keysight office are available
on the Web at:
http://www.keysight.com/find/assist
If you do not have access to the Internet, please contact your Keysight field engineer.
NOTE In any correspondence or telephone conversation, refer to the Keysight product by its model
number and full serial number. With this information, the Keysight representative can determine
whether your product is still within its warranty period.
If You Have Problems With the Upgrade Kit Contents
Keysight stands behind the quality of the upgrade kit contents. If you have problems with any item in the kit,
email Keysight Component Test Division (CTD) Support at [email protected], or telephone the
CTD Hotline at (707) 577-6802 and leave a voice mail message. Please include details of the problem.
Description of the Upgrade
This upgrade converts your Option 419 4-port analyzer (with configurable test set, extended power range, and
bias tees) to an Option 423 analyzer by adding a mechanical switch to each source port channel and a source
combiner to the port 1 channel.
In addition, source outputs are routed to the rear panel and rear-panel test set inputs are added.
About Installing the Upgrade
Products affected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .N5241A, N5242A, and N5249A Option 419
Installation to be performed by . . . . . . . . . . . . . . . . . . . . . . . .Keysight service center or personnel qualified by
Keysight
Estimated installation time . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.0 hours
Estimated adjustment time. . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 hours
Estimated full instrument calibration time . . . . . . . . . . . . . . .4.5 hours
Installation Note N5242-90005 3
Items Included in the Upgrade Kit
Check the contents of your kit against the following list. If any part is missing or damaged, contact Keysight
Technologies. Refer to "Getting Assistance from Keysight" on page 3.
Table 1 Contents of Upgrade Kit N5242-60104
Ref
Description Qty Part Number
Desig.
Installation note (this document) N5242-90005
A46 Port 1 mechanical switch
A47 Port 3 mechanical switch N1811-60028
4
A48 Port 4 mechanical switch Was N1811-60006
A49 Port 2 mechanical switch
5087-7757
A50 Combiner (bridge) 1
Was 5087-7315
Switch bracket 4 N5242-00009
Machine screw, M2.5 x 20, pan head (to attach mechanical switch to switch bracket) 8 0515-1992
Machine screw, M3.0 x 20, pan head (to attach combiner to switch bracket) 2 0515-1410
Machine screw, M3.0 x 6, pan head (to attach switch bracket to analyzer) 8 0515-0430
Cable tie wrap 3 1400-0249
Bulkhead connector assembly for rear panel 11 1250-3805
W25 RF cable, REF 2 SOURCE OUT to A28 port 2 bridge 1 N5222-20038
W95 RF cable, W3 to A46 port 1 mechanical switch 1 N5242-20269
W96 RF cable, A46 port 1 mechanical switch to A25 test port 1 bridge 1 N5242-20264
W97 RF cable, A46 port 1 mechanical switch to rear-panel PORT 1 SW SRC OUT (J11) 1 N5242-20287
W98 RF cable, rear-panel PORT 1 COMB THRU IN (J10) to A50 combiner 1 N5242-20288
W99 RF cable, rear-panel PORT 1 COMB ARM IN (J9) to A50 combiner 1 N5242-20289
W100 RF cable, A50 combiner to A46 port 1 mechanical switch 1 N5242-20265
W101 RF cable, W5 to A47 port 3 mechanical switch 1 N5242-20266
W102 RF cable, A47 port 3 mechanical switch to A26 test port 3 bridge 1 N5242-20263
W103 RF cable, A47 port 3 mechanical switch to rear-panel PORT 3 SW SRC OUT (J8) 1 N5242-20282
W104 RF cable, rear-panel PORT 3 SW TSET IN (J7) to A47 port 3 mechanical switch 1 N5242-20281
W105 RF cable, W7 to A48 port 4 mechanical switch 1 N5242-20267
W106 RF cable, A48 port4 mechanical switch to A27 test port 4 bridge 1 N5242-20261
W107 RF cable, A48 port 4 mechanical switch to rear-panel PORT 4 SW SRC OUT (J4) 1 N5242-20283
W108 RF cable, rear-panel PORT 4 SW TSET IN (J3) to A48 port 4 mechanical switch 1 N5242-20284
W109 RF cable, W9 to A49 port 2 mechanical switch 1 N5242-20268
4 Installation Note N5242-90005
Table 1 Contents of Upgrade Kit N5242-60104
Ref
Description Qty Part Number
Desig.
W110 RF cable, A49 port 2 mechanical switch to A28 test port 2 bridge 1 N5242-20262
W111 RF cable, A49 port 2 mechanical switch to rear-panel PORT 2 SW SRC OUT (J2) 1 N5242-20285
W112 RF cable, rear-panel PORT 2 SW TSET IN (J1) to A49 port 2 mechanical switch 1 N5242-20286
W113 Rear panel jumper 4 N5222-20091
W154 RF cable, front-panel REF 2 RCVR R2 IN to A23 mixer brick (R2) 1 N5242-20308
Installation Note N5242-90005 5
Installation Procedure for the Upgrade
The network analyzer must be in proper working condition prior to installing this option. Any necessary repairs
must be made before proceeding with this installation.
WARNING This installation requires the removal of the analyzer's protective outer covers. The analyzer
must be powered down and disconnected from the mains supply before performing this
procedure.
Electrostatic Discharge Protection
Protection against electrostatic discharge (ESD) is essential while removing or connecting cables or assemblies
within the network analyzer.
Static electricity can build up on your body and can easily damage sensitive internal circuit elements when
discharged. Static discharges too small to be felt can cause permanent damage. To prevent damage to the
instrument:
