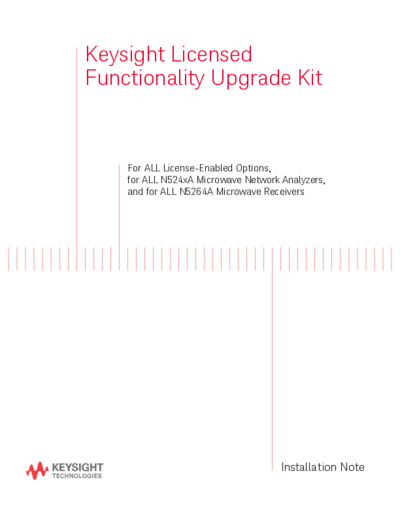

Image preview - the first page of the document

>> Download N5242-90006 Installation Note_252C Licensed Functinality Upgrade Kit for all N5242A Analyzers & N5264A Receivers [8] documenatation <<

Text preview - extract from the document

Keysight Licensed
Functionality Upgrade Kit

For ALL License-Enabled Options,
for ALL N524xA Microwave Network Analyzers,
and for ALL N5264A Microwave Receivers

Installation Note
Installation Note N5242-90006 1
WARRANTY STATEMENT
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD
TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY
TERMS COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE
WARRANTY TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.

DFARS/Restricted Rights Notice
If software is for use in the performance of a U.S. Government prime contract or subcontract, Software is
delivered and licensed as "Commercial computer software" as defined in DFAR 252.227-7014 (June 1995), or
as a "commercial item" as defined in FAR 2.101(a) or as "Restricted computer software" as defined in FAR
52.227-19 (June 1987) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of
Software is subject to Keysight Technologies' standard commercial license terms, and non-DOD Departments
and Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in FAR 52.227-
19(c)(1-2) (June 1987). U.S. Government users will receive no greater than Limited Rights as defined in FAR
52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.

2 Installation Note N5242-90006
Getting Assistance from Keysight
By internet or phone, get assistance with all your test and measurement needs.

Contacting Keysight
Assistance with test and measurements needs and information on finding a local Keysight office are available
on the Web at:
http://www.keysight.com/find/assist
If you do not have access to the Internet, please contact your Keysight field engineer.

NOTE In any correspondence or telephone conversation, refer to the Keysight product by its model
number and full serial number. With this information, the Keysight representative can
determine whether your product is still within its warranty period.

About Installing the Upgrade
Products affected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . All N524xA microwave network analyzers and all
N5264A microwave receivers
Installation to be performed by . . . . . . . . . . . . . . . . . . . . . . Keysight service center, personnel qualified by
Keysight, or customer
Estimated installation time . . . . . . . . . . . . . . . . . . . . . . . . . 5 minutes
Estimated verification time . . . . . . . . . . . . . . . . . . . . . . . . . 5 minutes

Items Included in the Upgrade Kit
Check the contents of your kit against the following list. If any of these items is missing, contact Keysight
Technologies. Refer to "Getting Assistance from Keysight" on page 3.

Table 1 Contents of Upgrade Kit

Quantity Description Part Number

1 Installation Note (this document) N5242-90006

1 Option Entitlement Certificate 5964-5145

Installation Note N5242-90006 3
List of Upgrades to Which This Installation Note Applies
This installation note applies to all of the upgrades in the following list. Do not be alarmed if your upgrade does
not appear in the list. Additional upgrades may have been introduced since this document was printed.
If your upgrade kit contains only a Option Entitlement Certificate and this installation note, the instructions
contained here will allow you to install your upgrade.
008 - Add pulsed-RF measurements
010 - Time domain operation
020 - Add IF inputs for antenna and mm-wave
021 - Add pulse modulator to internal 1st source
022 - Add pulse modulator to internal 2nd source
025 - Add four internal pulse generators
028 - Add noise figure measurements using standard receivers
080 - Frequency offset
082 - Scalar-calibrated converter measurements
083 - Frequency converter measurements
084 - Add embedded LO application
086 - Add gain compression application
087 - Intermodulation distortion application
088 - Source phase control
118 - Add fast CW mode
301 - Add application for use with standard CalPods
302 - Add application for use with temperature-characterized CalPods
303 - Add multiport capability for CalPods
304 - Add CalPod as ECal Capability
460 - Add integrated TMSA application
510 - Add nonlinear component characterization
520 - Arbitrary load impedance X-parameters
514 - Add nonlinear X-parameters
518 - Add nonlinear pulse envelope domain
551 - Add N-port calibrated measurements
897 - Perpetual Keysight inclusive calibration
898 - Perpetual standards compliant calibration

4 Installation Note N5242-90006
LFX - Add low frequency extension (N5241A and N5242A only)

License Key Redemption

NOTE The enclosed Option Entitlement Certificate is a receipt, verifying that you have purchased a
licensed option for the analyzer of your choice. You must now use a Keysight Web page to
request a license key for the instrument that will receive the option.

To enable the option product(s), you must request license key(s) from: http://www.keysight.com/find/
softwarelicense. To complete the request, you will need to gather the following information:
