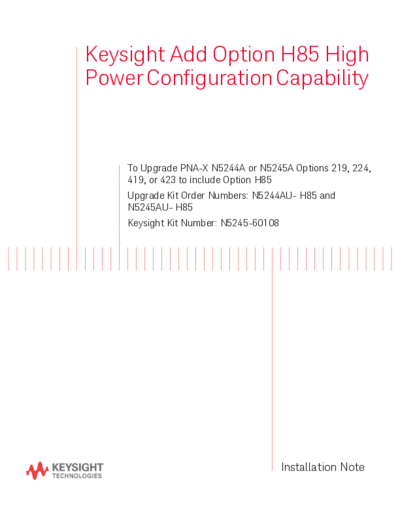

Image preview - the first page of the document



>> Download N5245-90011 Installation Note_252C H85 High Power Configuration Capability Upgrade Kit [14] documenatation <<

Text preview - extract from the document

Keysight Add Option H85 High
Power Configuration Capability


    To Upgrade PNA-X N5244A or N5245A Options 219, 224,
    419, or 423 to include Option H85
    Upgrade Kit Order Numbers: N5244AU- H85 and
    N5245AU- H85
    Keysight Kit Number: N5245-60108





                                       Installation Note
Installation Note N5245-90011   1
WARRANTY STATEMENT
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD
TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY
TERMS COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE
WARRANTY TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.




DFARS/Restricted Rights Notice
If software is for use in the performance of a U.S. Government prime contract or subcontract, Software is
delivered and licensed as "Commercial computer software" as defined in DFAR 252.227-7014 (June 1995), or
as a "commercial item" as defined in FAR 2.101(a) or as "Restricted computer software" as defined in FAR
52.227-19 (June 1987) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of
Software is subject to Keysight Technologies' standard commercial license terms, and non-DOD Departments
and Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in FAR 52.227-
19(c)(1-2) (June 1987). U.S. Government users will receive no greater than Limited Rights as defined in FAR
52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.




Safety Notes
The following safety notes are used throughout this document. Familiarize yourself with each of these notes
and its meaning before performing any of the procedures in this document.

WARNING        Warning denotes a hazard. It calls attention to a procedure which, if not correctly performed
               or adhered to, could result in injury or loss of life. Do not proceed beyond a warning note
               until the indicated conditions are fully understood and met.

CAUTION        Caution denotes a hazard. It calls attention to a procedure that, if not correctly performed or
               adhered to, could result in damage to or destruction of the instrument. Do not proceed beyond
               a caution sign until the indicated conditions are fully understood and met.




2                                                                             Installation Note N5245-90011
Description of the Upgrade
This upgrade adds Option H85 (high power configuration) to your N5244A or N5245A Option 219, 224, 419, or
423 analyzer by:
