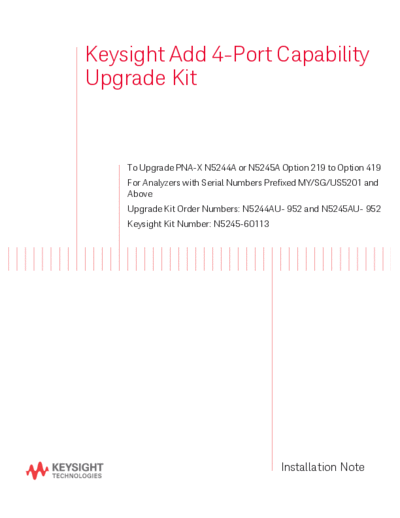

Image preview - the first page of the document



>> Download N5245-90113 Installation Note_252C Add 4-Port Capability Upgrade Kit to Upgrade N5244A or N5245A Opt 219 to 419 [11] documenatation <<

Text preview - extract from the document

Keysight Add 4-Port Capability
Upgrade Kit


    To Upgrade PNA-X N5244A or N5245A Option 219 to Option 419
    For Analyzers with Serial Numbers Prefixed MY/SG/US5201 and
    Above
    Upgrade Kit Order Numbers: N5244AU- 952 and N5245AU- 952
    Keysight Kit Number: N5245-60113




                                        Installation Note
WARRANTY STATEMENT
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD
TO THIS MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY
TERMS COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE
WARRANTY TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.




DFARS/Restricted Rights Notice
If software is for use in the performance of a U.S. Government prime contract or subcontract, Software is
delivered and licensed as "Commercial computer software" as defined in DFAR 252.227-7014 (June 1995), or as
a "commercial item" as defined in FAR 2.101(a) or as "Restricted computer software" as defined in FAR 52.227-
19 (June 1987) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of
Software is subject to Keysight Technologies' standard commercial license terms, and non-DOD Departments
and Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in FAR 52.227-
19(c)(1-2) (June 1987). U.S. Government users will receive no greater than Limited Rights as defined in FAR
52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.




Safety Notes
The following safety notes are used throughout this document. Familiarize yourself with each of these notes
and its meaning before performing any of the procedures in this document.

WARNING        Warning denotes a hazard. It calls attention to a procedure which, if not correctly performed
               or adhered to, could result in injury or loss of life. Do not proceed beyond a warning note until
               the indicated conditions are fully understood and met.

CAUTION        Caution denotes a hazard. It calls attention to a procedure that, if not correctly performed or
               adhered to, could result in damage to or destruction of the instrument. Do not proceed beyond a
               caution sign until the indicated conditions are fully understood and met.




2                                                                             Installation Note N5245-90113
Description of the Upgrade
This upgrade converts your N5244A or N5245A Option 219 2-port analyzer to a N5244A or N5245A Option 419 4-
port analyzer by adding:
