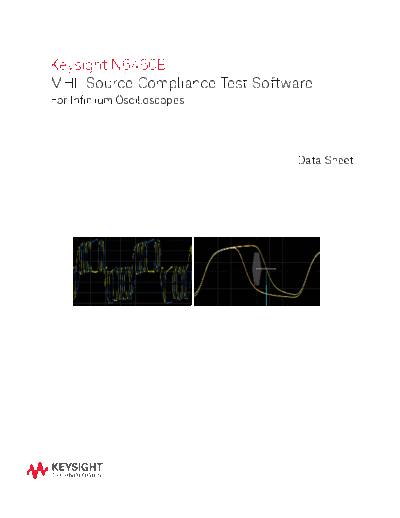

Image preview - the first page of the document



>> Download N6460B MHL Source Compliance Test Software For Infiniium Oscilloscopes - Data Sheet 5992-0011EN c20141204 [17] documenatation <<

Text preview - extract from the document

Keysight N6460B
MHL Source Compliance Test Software
For Infiniium Oscilloscopes




                                Data Sheet
Introduction

     MHL Source Compliance Test Software for Infiniium oscilloscopes provides you with a certified accu-
     rate way to verify and characterize your Mobile High Definition Link1 (MHL) designs for mobile devices
     such as cell phones and tablets. The MHL source compliance test software is used in the MHL Autho-
     rized Test Centers (ATCs) and has been tested thoroughly and validated by MHL semiconductor leader
     Silicon Image for device compliance testing so you can confidently use it to execute MHL electrical
     checklist tests as well as employ it as a development tool.

     The MHL Source Compliance Test Software performs the full physical layer compliance suites for MHL
     data transmission as identified in the MHL Compliance Test Specification 1.x, 2.x and 3.2 (CTS v3.2).
     These tests, in conjunction with MHL protocol tests, represent the full compliance regimen to qualify
     an MHL portable source design at an MHL-authorized test center. For MHL 3 portable device test-
     ing, there are additional test requirements for receiving data
