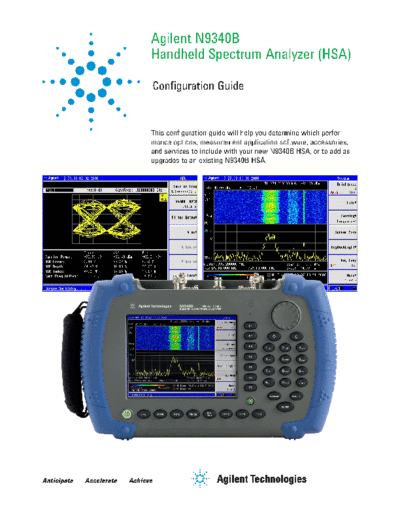

Image preview - the first page of the document
![N9340B Handheld Spectrum Analyzer (HSA) - Configuration Guide 5991-0542EN c20131210 [6]](/pics/5c4d6f4e96d1c.gif)
>> Download N9340B Handheld Spectrum Analyzer (HSA) - Configuration Guide 5991-0542EN c20131210 [6] documenatation <<
Text preview - extract from the document
Agilent N9340B
Handheld Spectrum Analyzer (HSA)
Configuration Guide
This configuration guide will help you determine which perfor-
mance options, measurement application software, accessories,
and services to include with your new N9340B HSA, or to add as
upgrades to an existing N9340B HSA.
Configure your Agilent N9340B Handheld Spectrum Analyzer (HSA)
This step-by-step process will help you configure your N9340B HSA. Capabilities that are listed as standard come with
the instrument at no additional charge. Tailor the performance, and service packages to meet your requirements. Ordering
optional capabilities at the time of purchase provides the lowest overall cost.
For performance information, refer to the N9340B Handheld Spectrum Analyzer Data Sheet.
Description Option number Additional information
Step 1. Add a preamplifier
Preamplifier, 1 MHz to 3 GHz N9340B-PA3
Step 2. Add a tracking generator
Tracking generator, 5 MHz to 7 GHz N9340B-TG3 Output level -25 dBm to 0 dBm, 1 dB step
Step 3. Add optional measurement features
Low frequency performance enhancement N9340B-XDM Adds xDSL measurement capability through a dedicated
and xDSL measurement capability measurement application and selected hardware improvements
Low frequency performance enhancement N9340B-IBC Adds in-band on-channel (IBOC) measurement capability through
and AM/FM In-Band On-Channel IBOC a dedicated measurement application and selected hardware
measurement improvements
Spectrogram monitoring N9340B-INM Adds dual-display (spectrogram and trace), continuous spectrogram
monitoring and unlimited data logging
AM/FM modulation analysis N9340B-AMA Provides modulation metrics, including carrier power, modulation
rate, and AM depth/FM deviation.
ASK/FSK modulation analysis N9340B-DMA Provides modulation metrics, including carrier power, ASK depth/
index, and FSK deviation.
Step 4. Add an accessory
Spare battery N9340B-BAT Lithium ion, 10.8 V, 4.56 A-hr
Spare external battery charger N9340B-BCG
Spare AC/DC adapter N9340B-ADP 1 output: 15 V, 5.33 A
Automotive 12 V DC adapter N9340B-1DC Provides DC power supply, no charging
Automotive 12 V DC adapter and charger N9340B-1DN Provides DC power supply and power charging
Hard transit case N9340B-1TC
Adaptor, 50 to 75 N9340B-TAD Type N(m) 50 to type N(f) 75
Calibrator N9311x-201 Precision mechanical calibrator, 3-in-1 OSL, DC to 7 GHz, N(m)
Antenna N9311x-500 70 MHz to 1000 MHz, 65 g, 180 degree tilt angle adjustable, N(m)
telescopic whip antenna
Antenna N9311x-501 700 MHz to 2500 MHz, 70 g, 210 mm x 20 mm, omni-directional,
N(m)
Antenna N9311x-504 700 MHz to 4 GHz, 4 dBi gain, 270 g, 340 mm x 200 mm x 25 mm,
logarithmic-periodic, N(m)
Antenna N9311x-508 680 MHz to 8 GHz, 5 dBi gain, 250 g, 340 mm x 200 mm x 25 mm,
logarithmic-periodic, N(m)
Antenna N9311x-518 680 MHz to 18 GHz, 5 dBi gain, 250 g, 340 mm x 200 mm x 25 mm,
logarithmic-periodic, N(m)
Bandpass filter N9311x-550 ◦ Jabse Service Manual Search 2025 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
