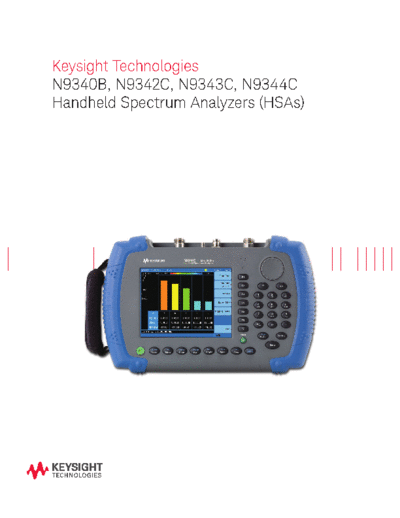

Image preview - the first page of the document



>> Download N9340B_252C N9342C_252C N9343C_252C N9344C Handheld Spectrum Analyzers (HSAs) - Brochure 5990-8024EN c20141006 [17] documenatation <<

Text preview - extract from the document

Keysight Technologies
N9340B, N9342C, N9343C, N9344C
Handheld Spectrum Analyzers (HSAs)
    Table of Contents
                                                                      Field Testing Just Got Easier
    Field testing just got easier............. 3
    Get the features you need
      in a field-ready instrument .......... 4
    Gain confidence in your
      measurements with
                                                              Wireless communication systems are ubiquitous.
      benchtop performance                                    From military, law enforcement, or entertainment
      in a handheld instrument ............ 5
    Increase productivity with
                                                              to medical, industrial, or broadcast industries we
      the task planner ............................ 6         rely on these systems to transfer strategic
    N934xC HSA features ...................... 7              information where it's needed. Keeping these
    Installation, verification, and
      maintenance of wireless                                 systems up and running at optimum performance
      communication systems.............. 8
                                                              is no easy task--until now.
    Identifying interference .................. 9
    Monitoring signals remotely ......... 10
    Locating sources of unwanted
      or unexpected signals ................ 11
    Site survey and mapping .............. 12
    Measurement capabilities ............. 13
    Accessories...................................... 15
                                                                                                              The N934X HSA



Key specs and functions                                    N9344C        N9343C                  N9342C                  N9340B
Maximum frequency                                          20 GHz        13.6 GHz                7 GHz                   3 GHz
Display average noise level (DANL),
