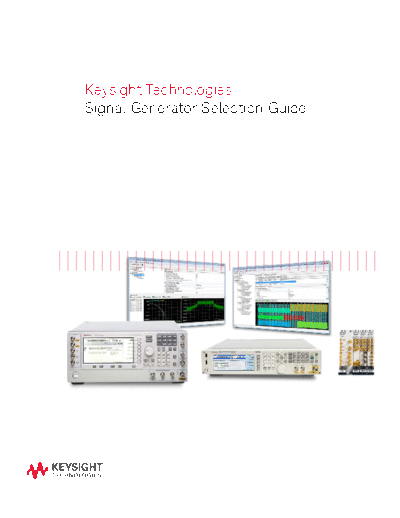

Image preview - the first page of the document



>> Download Signal Generator Selection Guide - Selection Guide 5990-9956EN c20140919 [17] documenatation <<

Text preview - extract from the document

Keysight Technologies
Signal Generator Selection Guide
Introduction

               Keysight Technologies, Inc. offers the widest selection of         capabilities vary from general-purpose AM, FM and digital
               signal generators from baseband to 67 GHz, with frequency          I/Q to standard-specific formats such as GSM, W-CDMA,
               extensions to 1.1 THz. From basic to advanced functional-          HSPA, LTE, GPS, and wireless LAN. Keysight provides sig-
               ity, each signal generator delivers benchmark performance          nal generators in multiple form factors, including benchtop
               in its class to address the requirements in design and             and modular PXI.
               manufacture of radio transceivers and their components;
               and applications ranging from low-frequency navigation             This selection guide provides an overview and side-by-side
               signals, through cellular mobile radio, to millimeter wave         comparisons to help you determine which signal generator
               RADAR and satellite systems. Each offers synthesized               is right for you. It is intended to supplement online selection
               frequency accuracy and stability, excellent calibrated             tools available at www.keysight.com/find/sg.
               level accuracy, and remote programmability. Modulation



               Frequency coverage for Keysight signal generators
                                                          9 kHz   100 kHz 1 MHz         3 GHz      6 GHz     10 GHz     40 GHz   44 GHz   70 GHz
               Microwave signal generators
               PSG MW vector
               PSG MW analog
               MXG MW analog
               EXG MW analog
               RF signal generators
               PSG RF analog
    Benchtop




               MXG RF vector
               MXG RF analog
               EXG RF vector
               EXG RF analog
               N9310A RF analog
               Baseband products
               Baseband generator and channel emulator1   Up to 160 MHz
               Digital interface module                   Up to 400 MHz (serial mode); up to 200 MHz (parallel mode)
               PXI RF vector
    Modular




               PXI CW
               PXI local oscillator

   1. Additional high performance baseband arbitrary waveform generators with up to 5 GHz analog bandwidth can be found at:
      www.keysight.com/find/arbs
Product Categories


Benchtop and modular PXI signal generators
                                                                   Key Specifications Comparison . . . . . . . .     . . . .4
Benchtop signal generators are well-suited for R&D or              Application and Software Comparison . . . .       . . . .6
design verification, where analysis and troubleshooting            Signal Studio Software . . . . . . . . . . . .    . . . .7
benefit from interactive analysis. Benchtop models range           Benchtop
from RF to microwave with a broad range of capabilities so            PSG signal generators . . . . . . . . . . .    .   .   .   .8
you can select which generator best suites your needs.                X-Series signal generators . . . . . . . . .   .   .   .   10
                                                                      RF analog signal generator . . . . . . . .     .   .   .   12
Modular PXI signal generators are ideal for applications              Baseband generator and interface module        .   .   .   13
that require multi-channel measurement capabilities, fast          Modular
measurement speed and a small footprint. They also offer              PXI signal generators . . . . . . . . . . .    . . . 14
scalability and flexibility to configure solutions with a          Migrating from Legacy Signal Generators . .       . . . 16
shared processor, chassis and other modular instruments.
The PXI vector signal generator can be used with the same
software applications as bench top signal generators,
providing measurement consistency and compatibility
throughout the product development cycle.                        Baseband generator and channel emulator
                                                                 Baseband generators (BBG) output complex I/Q signals
Vector signal generators                                         such as QPSK, and can have several modes of operation:
Vector signal generators or digital signal generators have       Waveform playback mode to play repetitive signals for
a built-in I/Q modulator to upconvert complex modulation         component testing
formats such as QPSK and 64QAM. When combined with
an IQ baseband generator, virtually any signal can be
