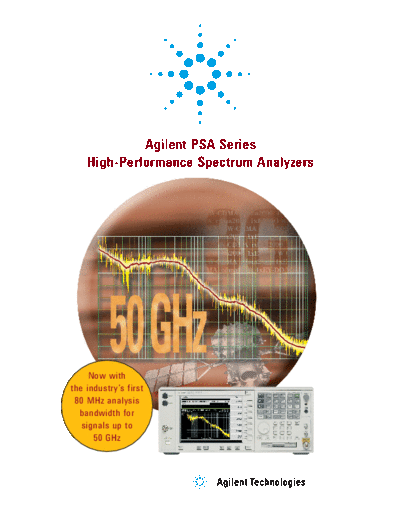

Image preview - the first page of the document



>> Download PSA Series High-Performance Spectrum Analyzers - Brochure 5980-1283E c20131126 [24] documenatation <<

Text preview - extract from the document

             Agilent PSA Series
    High-Performance Spectrum Analyzers




     Now with
the industry's first
 80 MHz analysis
  bandwidth for
   signals up to
      50 GHz
Performance Exceeding Expectations



The brainpower and                          The Agilent PSA Series offers
                                            high-performance spectrum analysis
the will are already                        up to 50 GHz and beyond with powerful
                                            one-button measurements, a versatile    Dynamic range
yours; the next                             feature set, and a leading-edge         Fine-tune measurements with the industry's
                                            combination of flexibility, speed,      most usable dynamic range.
step is selecting                           accuracy, and dynamic range. From
precisely the right                         millimeter wave and phase noise
                                            measurements to spur searches and
tools to reach the                          modulation analysis, the PSA Series
                                            offers unique and comprehensive         Accuracy
market first.                               high-performance solutions to R&D       Design with confidence using industry's
                                            and manufacturing engineers in          highest accuracy.
 The new Agilent N9030A PXA signal          cellular and emerging wireless
 analyzer (currently available up to 26.5   communications, aerospace,
 GHz) is built on the heritage of the       and defense.
 venerable PSA legacy with the latest
 technologies. Customers who seek
 performance and usability beyond the                                               Flexibility
 PSA may consider the PXA to maxi-                                                  Take control of measurement setups
 mize their signal insights. PSA owners                                             through advanced flexibility.
 who seek a migration solution should
 take advantage of the PXA's "Form/
 Fit/Function" compatibility with the
 PSA to mitigate migration risks.
                                                                                    Analysis bandwidth
                                                                                    Maximize your signal analysis capabilities
PSA Series frequency range summary                                                  with up to 80 MHz of analysis bandwidth
                                                                                    built-in (14-bit digitizer resolution); and up
                                                                                    to 300 MHz of analysis bandwidth by
                                                                                    using an oscilloscope as a digitizer.




                                                              2
Capability Beyond Limitation



Design efficiently and                      Increase and maintain                      One analyzer, many solutions
