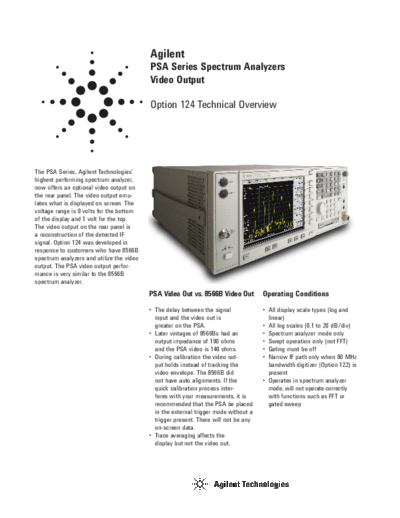

Image preview - the first page of the document



>> Download PSA Series Spectrum Analyzers -- Video Output Option 124 - Technical Overview 5989-1118EN c20131122 [4] documenatation <<

Text preview - extract from the document

                                           Agilent
                                           PSA Series Spectrum Analyzers
                                           Video Output

                                           Option 124 Technical Overview




The PSA Series, Agilent Technologies'
highest performing spectrum analyzer,
now offers an optional video output on
the rear panel. The video output emu-
lates what is displayed on screen. The
voltage range is 0 volts for the bottom
of the display and 1 volt for the top.
The video output on the rear panel is
a reconstruction of the detected IF
signal. Option 124 was developed in
response to customers who have 8566B
spectrum analyzers and utilize the video
output. The PSA video output perfor-
mance is very similar to the 8566B
spectrum analyzer.
                                           PSA Video Out vs. 8566B Video Out          Operating Conditions
