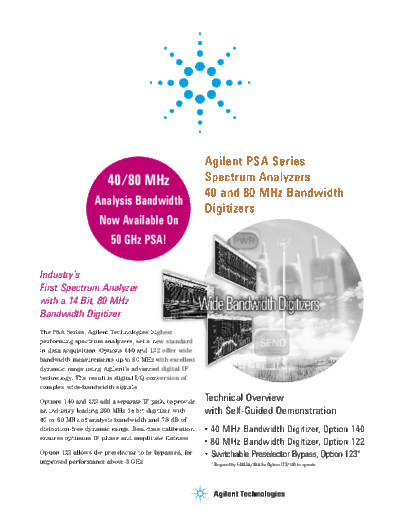

Image preview - the first page of the document
![PSA Series Spectrum Analyzers 40 and 80 MHz Bandwidth Digitizers - Technical Overview 5989-1115EN c20131125 [16]](/pics/5c4d6fddaad3e.gif)
>> Download PSA Series Spectrum Analyzers 40 and 80 MHz Bandwidth Digitizers - Technical Overview 5989-1115EN c20131125 [16] documenatation <<
Text preview - extract from the document
Agilent PSA Series
40/80 MHz Spectrum Analyzers
40 and 80 MHz Bandwidth
Analysis Bandwidth
Digitizers
Now Available On
50 GHz PSA!
Industry's
First Spectrum Analyzer
with a 14 Bit, 80 MHz
Bandwidth Digitizer
The PSA Series, Agilent Technologies' highest
performing spectrum analyzers, set a new standard
in data acquisition. Options 140 and 122 offer wide
bandwidth measurements up to 80 MHz with excellent
dynamic range using Agilent's advanced digital IF
technology. The result is digital I/Q conversion of
complex wide-bandwidth signals.
Options 140 and 122 add a separate IF path, to provide Technical Overview
an industry leading 200 MHz 14 bit digitizer with with Self-Guided Demonstration
40 or 80 MHz of analysis bandwidth and 78 dB of
distortion-free dynamic range. Real-time calibration ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
