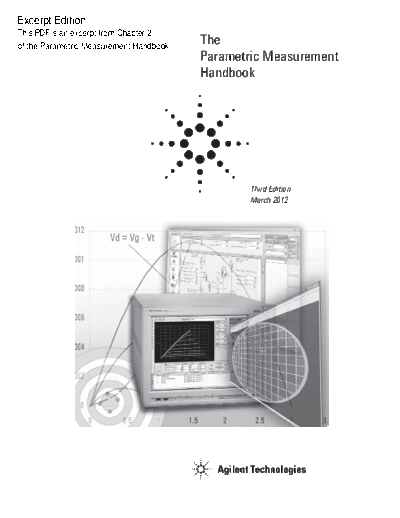

Image preview - the first page of the document



>> Download Parametric Measurement Basics 2-Parametric_Measurement_Basic c20130117 [1] documenatation <<

Text preview - extract from the document

Excerpt Edition
This PDF is an excerpt from Chapter 2
of the Parametric Measurement Handbook.
                                          The
                                          Parametric Measurement
                                          Handbook




                                                 Third Edition
                                                 March 2012
Chapter 2: Parametric Measurement Basics
                        "I often say that when you can measure what you are speaking about, and
                        express it in numbers, you know something about it ..."

                        "But when you cannot measure it, when you cannot express it in numbers, your
                        knowledge is of a meager and unsatisfactory kind; it may be the beginning of
                        knowledge, but you have scarcely, in your thoughts, advanced to the stage of
                        science, whatever the matter may be."
                        -- William Thomson (Lord Kelvin)

                        Measurement terminology
                        Before you can begin to collect measurement data you need to know basic
                        measurement terminology. In particular, understanding the precise meaning of
                        the terms accuracy, repeatability and resolution is essential to understanding
                        parametric test and the measurement capabilities of a parametric measurement
                        resource.

                        Accuracy and repeatability
                        Accuracy and repeatability are related but different quantities. Accuracy is the
                        degree of conformity of a measured or calculated quantity to its actual (true)
                        value. Repeatability (also known as precision) is the degree to which repeated
                        measurements or calculations show the same or similar results. Accuracy and
                        repeatability do not have any innate correlation. A measurement can have high
                        accuracy and high repeatability, high accuracy and low repeatability, low accu-
                        racy and high repeatability, or both low accuracy and low repeatability.

                        The visual analogy that is often used to explain these terms is a bull's-eye target.
                        A group of points that are close to the center of a target but spaced far apart
                        from one another (as shown below) have high accuracy but low repeatability.




                                 High accuracy, low repeatability

                        Figure 2.1. High accuracy and low repeatability.




                                             14
A group of points that are far from the center of a target but spaced close
together (as shown below) have low accuracy but high repeatability.




           Low accuracy, high repeatability

Figure 2.2. Low accuracy and high repeatability.

The analogies for the two other cases should be fairly obvious. For production
parametric test, repeatability is usually more important than absolute accuracy.
This is because parametric test is concerned with monitoring trends, which
makes having highly repeatable measurements extremely important.

Resolution
For parametric test, resolution is what allows us to gauge accuracy and
repeatability. In this sense it is the most important specification for parametric
test. Resolution is the lowest resolvable quantity of data that an instrument
can accurately measure. The easiest way to think about this is in terms of an
analog-to-digital converter (ADC) circuit. The figure below shows a simplified
version of an ADC:



                                                      Clock



Analog
                  +
 input                            Control
                                                Up/down counter
                  -




                           D/A converter                            Digital output



Figure 2.3. Simplified analog-to-digital converter (ADC) circuit.




                      15
As this illustrates, the number of bits available to the digital-to-analog converter
(DAC) will determine the fineness of the measurement detail that can be distin-
guished, which is the resolution. For example, a resolution of 20 bits represents
the ability to distinguish one part in 220 or 1,048,576 (basically one part in a
million).

To express the measurement resolution in terms of current or voltage, you need
to know the measurement range in which you are operating. For example, in a 5 V
measurement range the ADC measures from
