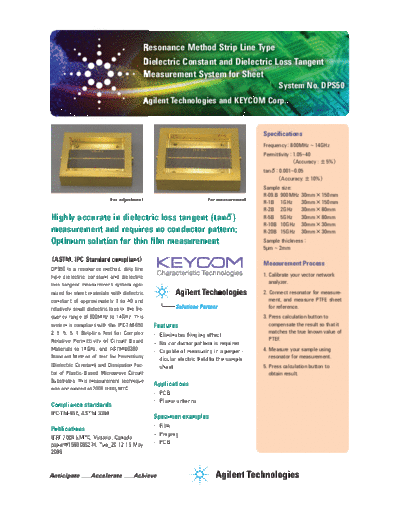

Image preview - the first page of the document
![Resonance Method Strip Line Type Dielectric Constant and Dielectric Loss Tangent Measurement System 5991-1844EN c20130128 [2]](/pics/5c4d6ff0a10fb.gif)
>> Download Resonance Method Strip Line Type Dielectric Constant and Dielectric Loss Tangent Measurement System 5991-1844EN c20130128 [2] documenatation <<
Text preview - extract from the document
Resonance Method Strip Line Type
Dielectric Constant and Dielectric Loss Tangent
Measurement System for Sheet
System No. DPS50
Agilent Technologies and KEYCOM Corp.
Specifications
Frequency 800MHz ~ 14GHz
Permittivity 1.05~40
Accuracy : 5%
tan 0.001~0.05
Accuracy: 10%
Sample size:
R-09.B 900MHz 30mm 150mm
For adjustment For measurement R-1B 1GHz 30mm 150mm
R-2B 2GHz 30mm 80mm
Highly accurate in dielectric loss tangent (tan ) R-5B 5GHz 30mm 80mm
R-10B 10GHz 30mm 30mm
measurement and requires no conductor pattern; R-20B 15GHz 30mm 30mm
Optimum solution for thin film measurement Sample thickness
5 m ~ 2mm
ASTM, IPC Standard compliant
Measurement Process
DPS50 is a resonance method, strip line
type dielectric constant and dielectric 1. Calibrate your vector network
loss tangent measurement system opti- analyzer.
mized for sheet materials with dielectric 2. Connect resonator for measure-
constant of approximately 1 to 40 and ment, and measure PTFE sheet
relatively small dielectric loss in the fre- for reference.
quency range of 800MHz to 14GHz. This 3. Press calculation button to
system is compliant with the IPC-TM-650 Features compensate the result so that it
2. 5. 5. 5. 1 Stripline Test for Complex matches the true known value of
Eliminates fringing effect
Relative Permittivity of Circuit Board PTEF.
No conductor pattern is required
Materials to 14GHz, and ASTMD3380 Capable of measuring in a perpen- 4. Measure your sample using
Standard Method of Test for Permittivity dicular electric field to the sample resonator for measurement.
(Dielectric Constant) and Dissipation Fac- sheet 5. Press calculation button to
tor of Plastic-Based Microwave Circuit obtain result.
Substrates. This measurement technique
Applications
was announced at 2008 IEEEI2MTC.
PCB
Planar antenna
Compliance standards
IPC-TM-650, ASTM 3380
Specimen examples
Publications Film
Prepreg
IEEE 2008 I2MTC, Victoria, Canada
paper#1569085274, Tue_20 12-15 May PCB
2008
Resonance Method Strip Line Type
Dielectric Constant and Dielectric Loss Tangent Measurement System
for Sheet
Configurations
Pressure type fixture
Vector network
analyzer
GPIB
cable
Digital indicator
Windows
PC
Measurement data example
Pressure sensor
Sample
Printer www.keycom.co.jp
For more information on KEYCOM
Resonator Corp. products, applications or
services, please visit our website at
www.keycom.co.jp or e-mail us at
Ordering Information E-mail: [email protected]
Agilent Technologies KEYCOM Corp.
Vector network analyzer 3-40-2 Minamiotsuka Toshima-ku, Tokyo
- PNA series N52xx 170-0005 Japan
- ENA series E50xx Phone: +81-3-5950-3101
FAX: +81-3-5950-3380
KEYCOM Corp. KEYCOM USA Corp.
System No. DPS50 533 Airport Blvd. Suite 400 Burlingame,
1. Pressure type fixture .......................................................... FS-03 CA 94010 USA
Phone: +1-650-685-2477
2. Resonator measurement + calibration + fixture FAX: +1-650-373-2002
900MHz ............................................................................... R-0.9B
1GHz ........................................................................................ R-1B www.agilent.com
2GHz ........................................................................................ R-2B
5GHz ........................................................................................ R-5B For more information on Agilent
10GHz ................................................................................... R-10B Technologies products, applications
15GHz ................................................................................... R-15B or services, please contact your local
Agilent office. The complete list is
3. Software ....................................................................... DMP-61M available at:
4. Coaxial cable ..................CM06D-APC2.9(m)APC2.9(m)-500 2pc. www.agilent.com/find/contactus
5. Windows PC, Printer ............................ Available upon request
