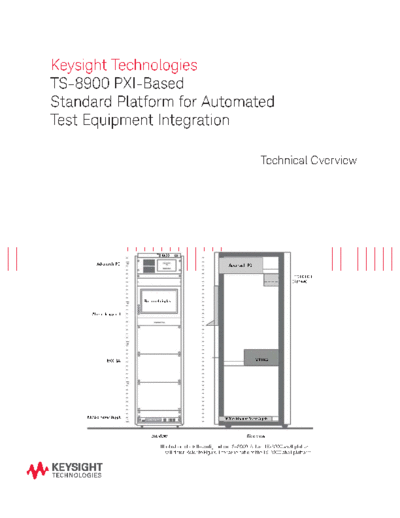

Keysight Technologies
TS-8900 PXI-Based
Standard Platform for Automated
Test Equipment Integration
Technical Overview
TS-8900
Advantech IPC Advantech IPC
E1135C PDU
(3 phase)
Flat panel display
Abus debug panel
M9018A M9018A
N670xx Power Supply N670xx Modular Power Supply
Front view Side view
Illustration of a full-coniguration TS-8900. Actual TS-8900 shell platform
will differ. Refer to Figure 1 for schematic of the TS-8900 shell platform.
Introduction
The Keysight Technologies, Inc. TS-8900 standard PXI-based high performance shell platform that
offers self-integrators who need an off-the-shelf PXI-based platform the following values:
