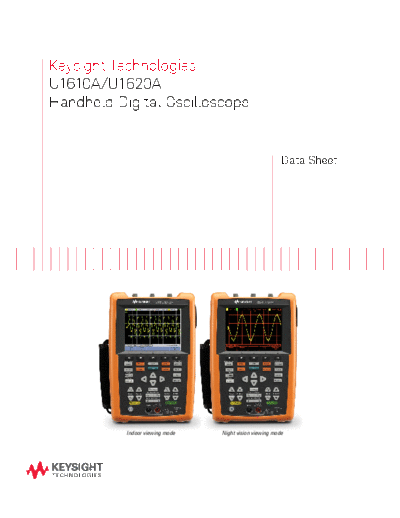

Image preview - the first page of the document



>> Download U1610A U1620A Handheld Digital Oscilloscope - Data Sheet 5990-9523EN c20140903 [13] documenatation <<

Text preview - extract from the document

Keysight Technologies
U1610A/U1620A
Handheld Digital Oscilloscope


                                                         Data Sheet




           Indoor viewing mode   Night vision viewing mode
Introduction

     Retool your expectations in the world's first VGA display
     handheld oscilloscope with two isolated channels
     The Keysight Technologies, Inc. U1610A/U1620A is the world's first handheld oscilloscope with a
     VGA display. This 100/200 MHz handheld oscilloscope offers a floating measurement capability with
     two CAT III 600 V isolated channels. With up to 2 GSa/s sam- pling rate and 2 Mpts memory depth,
     it captures more waveforms from signals such as pulse width modulated circuit, in rush, transient, and
     motor start up sequences. The benchtop-like display and dual window zoom allow you to easily identify
     problem areas and zoom in for more detailed analysis. Now, you can view signals in detail and detect
     glitches easily.
