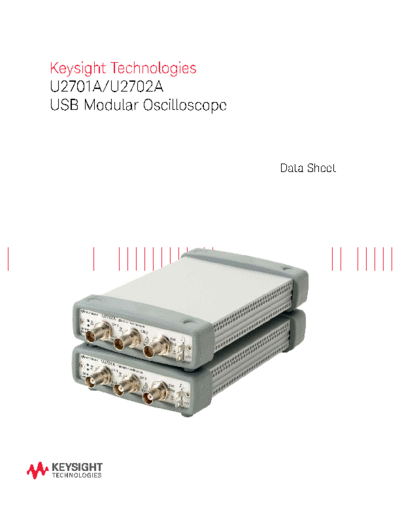

U2701A U2702A USB Modular Oscilloscope - Data Sheet 5990-9537EN c20141029 [12]


>> Download U2701A U2702A USB Modular Oscilloscope - Data Sheet 5990-9537EN c20141029 [12] documenatation <<

Text preview - extract from the document
Keysight Technologies
U2701A/U2702A
USB Modular Oscilloscope


                           Data Sheet
Introduction
     The Keysight Technologies, Inc. U2701A and U2702A USB modular oscilloscopes combine a set of essential
     features that are ideal for analyzing designs in an affordable way.

     The U2701A and U2702A come in two bandwidths: 100 MHz and 200 MHz respectively. These devices are
     uniquely designed to accommodate your need for flexibility with the dual-play function. This function allows
     you to use the oscilloscope as a standalone instrument, or to scale up the test system in a cardcage with
     additional scopes or with other Keysight USB modular product offerings, providing a complete solution for
     system development.

     The U2701A/U2702A USB modular oscilloscopes give you the debugging power you need. Each USB
     modular oscilloscope comes with standard features such as advanced triggering, automatic measurements,
     math functions including FTTs and much more.


     Features
