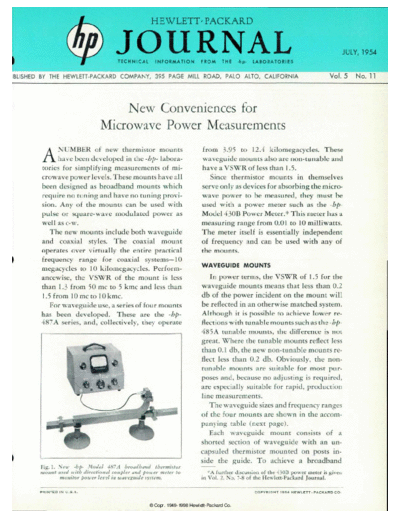

Image preview - the first page of the document



>> Download 1954-07 documenatation <<

Text preview - extract from the document

                                                                 HEWLETT-PACKARD


                                             JOURNAL
                                             T E C H N I C A L   I N F O R M A T I O N   F R O M   T H E   - h p -   L A B O R A T O R I E S
                                                                                                                                                                                                  JULY, 1954


BLISHED BY THE HEWLETT-PACKARD COMPANY, 395 PAGE MILL ROAD, PALO ALTO, CALIFORNIA                                                                                                    Vol.5 No. 11




                                               New Conveniences for
                                           Microwave Power Measurements
          A NUMBER of new thermistor mounts                                               from 3.95 to 12.4 kilomegacycles. These
        2~\ have been developed in the -hp- labora                                        waveguide mounts also are non-tunable and
        tories for simplifying measurements of mi                                         have a VSWR of less than 1.5.
        crowave power levels. These mounts have all                                          Since thermistor mounts in themselves
        been designed as broadband mounts which                                           serve only as devices for absorbing the micro
        require no tuning and have no tuning provi                                        wave power to be measured, they must be
        sion. Any of the mounts can be used with                                          used with a power meter such as the -hp-
        pulse or square-wave modulated power as                                           Model 430B Power Meter. This meter has a
        well as c-w.                                                                      measuring range from 0.01 to 10 milliwatts.
           The new mounts include both waveguide                                          The meter itself is essentially independent
        and coaxial styles. The coaxial mount                                             of frequency and can be used with any of
        operates over virtually the entire practical                                      the mounts.
        frequency range for coaxial systems
