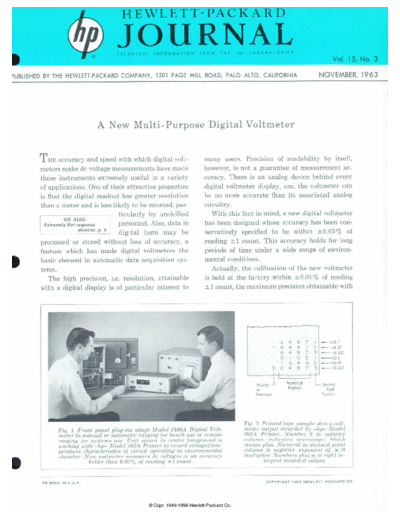

Image preview - the first page of the document



>> Download 1963-11 documenatation <<

Text preview - extract from the document

                                                 HEWLETT-PACKARD

                                               JOURNAL
                                               T E C H N I C A L   I N F O R M A T I O N   F R O M   T H E   - d p -   l A B O R A i O R I E S

                                                                                                                                                                                   Vol. 15, No. 3

PUBLISHED BY THE HEWLETT-PACKARD COMPANY, 1501 PAGE MILL ROAD, PALO ALTO, CALIFORNIA                                                                                     NOVEMBER, 1963




                                            A New Multi -Purpose Digital Voltmeter


        1 HE accuracy and speed with which digital volt                                      many users. Precision of readability by itself,
        meters make dc voltage measurements have made                                        however, is not a guarantee of measurement ac
        these instruments extremely useful in a variety                                      curacy. There is an analog device behind every
        of applications. One of their attractive properties                                  digital voltmeter display, and the voltmeter can
        is that the digital readout has greater resolution                                   be no more accurate than its associated analog
        than a meter and is less likely to be misread, par                                   circuitry.
                                         ticularly by unskilled                                 With this fact in mind, a new digital voltmeter
                  SEE ALSO:
          Extremely flat response        personnel. Also, data in                            has been designed whose accuracy has been con
                          detector, p. 8
                                         digital form may be                                 servatively specified to be within ±0.05% of
        processed or stored without loss of accuracy, a                                      reading ±1 count. This accuracy holds for long
        feature which has made digital voltmeters the                                        periods of time under a wide range of environ
        basic element in automatic data acquisition sys                                      mental conditions.
        tems.                                                                                   Actually, the calibration of the new voltmeter
           The high precision, i.e. resolution, attainable                                   is held at the factory within ±0.01% of reading
        with a digital display is of particular interest to                                  ± 1 count, the maximum precision obtainable with
