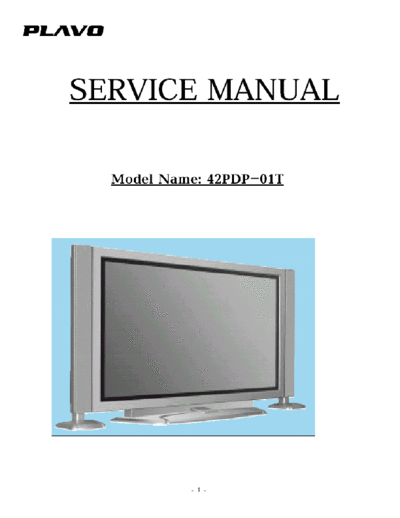

Image preview - the first page of the document



>> Download 42PDP-01T documenatation <<

Text preview - extract from the document

SAFETY PRECAUTIONS
(MODULE(SET) USE AND CONSIDERATIONS IN SERVICING)
 PDP Module(set) is a display device to be divided into a Panel part and a Drive part
 (a mechanical part). The Panel part consists of Electrodes, Phosphor, various dielectrics
 and gas, and the Drive part includes electronic circuitry and PCB. (The mechanical part
 includes mask assembly,backcover and others parts).
 When using / handling this PDP Module/set, pay attention to the below warning and
 cautions.Indicates a hazard that may lead to death or injury if the warning is ignored and the
 product is handled incorrectly.
 Indicates a hazard that can lead to injury or damage to property if the caution is ignored and
 the product is handled incorrectly.
  . WARNING
(1) Do not supply a voltage higher than that specified to this product. This may damage the
    product and may cause a fire.
(2) Do not use this product in locations where the humidity is extremely high, where it may be
    splashed with water, or where flammable materials surround it.
    Do not install or use the product in a location that does no satisfy the specified
    environmental conditions.
    This may damage the product and may cause a fire.
(3) If a foreign substance (such as water, metal, or liquid) gets inside the product,
    immediately turn off the power.Continuing to use the product, it is may cause fire or
    electric shock.
(4) If the product emits smoke, and abnormal smell, or makes an abnormal sound,
    immediately turn off thepower.Continuing to use the product, it may cause fire or electric
    shock.
(5) Do not disconnect or connect the connector while power to the product is on. It takes
    some time for the voltage to drop to a sufficiently low level after the power has been
    turned off.
    Confirm that the voltage has dropped to a safe level before disconnecting or connecting
    the connector.
(6) Do not pull out or insert the power cable from/to an outlet with wet hands. It may cause
    electric shock.
(7) Do not damage or modify the power cable. It may cause fire or electric shock.
(8) If the power cable is damaged, or if the connector is loose, do not use the product:
    otherwise, this can lead to fire or electric shock.
(9) If the power connector or the connector of the power cable becomes dirty or dusty, wipe it
    with a dry cloth.Otherwise, this can lead to fire.
(10) PDP Module(set) uses a high voltage (Max.450V dc). Keep the cautions concerning
      electric shock and do not touch the Device circuitry when handling the PDP Unit. And
      because the capacitor of the Device circuitry may remain charged at the moment of
      Power OFF, standing by for 1 minute is required in order to touch the Device circuitry.
  . CAUTIONS
(1) Do not place this product in a location that is subject to heavy vibration, or on an unstable
    surface such as an inclined surface. The product may fall off or fall over, causing injuries.
(2) Before disconnecting cable from the product, be sure to turn off the power. Be sure to
    hold the connector when disconnecting cables. Pulling a cable with excessive force may
    cause the core of the cable to be exposed or break the cable, and this can lead to fire or
    electric shock.
(3) This product should be moved by two or more persons. If one person attempts to carry
    this product alone,he/she may be injured.
(4) This product contains glass. The glass may break, causing injuries, if shock, vibration,
    heat, or distortion is applied to the product.
(5) The temperature of the glass of the display may rise to 80
