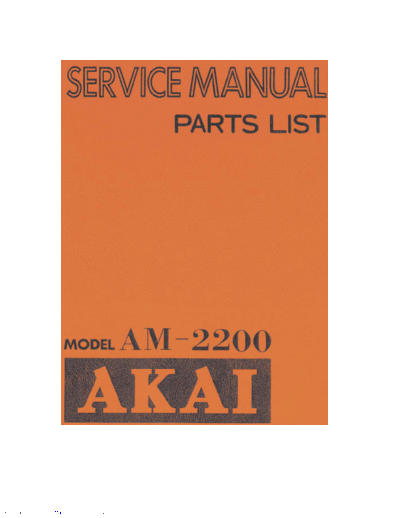

Image preview - the first page of the document
AM-2200 Ver 2


>> Download AM-2200 Ver 2 documenatation <<

Text preview - extract from the document
Downloaded from www.Manualslib.com manuals search engine
                                                                      SECTION 1

                                                   SERVICE                      MANUAL
                                                                TABLE OF CONTENTS



                          I.      TECHNICAL DATA                                                                        2
                          II.     DISMANTLING OF UNIT                                                                   3
                          III.    CONTROLS                                                                              4
                          IV.     PRINCIPAL PARTS LOCATION                                                              4
                          V.      LEVEL DIAGRAM                                                                         5
                          VI.     MAIN AMP ADJUSTMENT                        ..........................                 5
                          VII.    CLASSIFICATION OF VARIOUS P.C BOARDS....................................              6
                                  1. RELATION OF P.C BOARD TITLE AND IDENTIFICATION NUMBER                              6
                                  2. COMPOSITION OF VARIOUS P.C BOARD                                                 . 7




                          For basic adjustments measuring methods, and operating principles, refer to GENERAL OPERATING
                          PRINCIPLES AND ADJUSTMENTS.




Downloaded from www.Manualslib.com manuals search engine
                    I. TECHNICAL DATA

                    1. Power Amplifier Section
                    Continuous Power Output                             20 watts per channel, minimum RMS, at 8 ohms from 20 to 20,000 Hz with no
                                                                        more than 0.5% total harmonic distortion
                    POWER BANDWIDTH (1HF)                               10 to 45,000 Hz/8 ohms (Total Harmonic Distortion 0.5%)
                    SIGNAL TO NOISE RATIO (1HF)                         Phono: Better than 85 dB
                                                                        Aux: Better than 95 dB
                   RESIDUAL NOISE                                       Less than 0.8 mV at 8 ohms
                   CHANNEL SEPARATION (1HF)                             Phono: Better than 55 dB at 1,000 Hz
                   DAMPING FACTOR                                       More than 60 (1 kHz, 8 ohms)
                   OUTPUT                                               Speakers: A,B (4 to 16 ohms)/A+B(8 to 16 ohms)
                                                                        Headphone: 4 to 16 ohms

                    2. Pre Amplifier Section
                    INPUT SENSITIVITY AND IMPEDANCE                     Phono: 3 mV/47 k ohms
                                                                        AUX: 150 m V/ 100 k ohms
                                                                        Tuner: 150 mV/100 k ohms
                                                                        Tape Monitor: PIN; 150 mV/100 k ohms DIN; 150 mV/100 k ohms
                    OUTPUT LEVEL AND IMPEDANCE                          TapeREC: PIN; 150 mV/100 k ohms DIN; 150 mV/100 k ohms
                    FREQUENCY RESPONSE                                  Phono (RIAA equalization) 30 to 15,000 Hz +-1 dB
                    TONE CONTROL                                        BASS:
