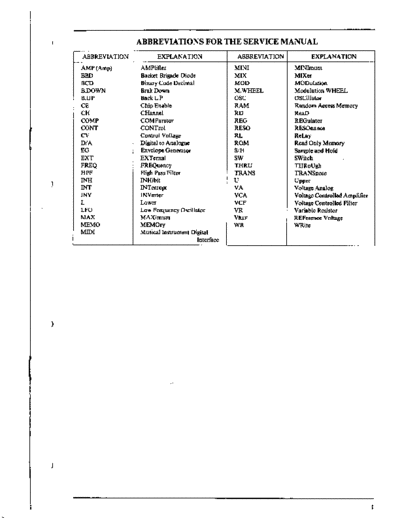

Image preview - the first page of the document



>> Download AX-60 documenatation <<

Text preview - extract from the document

ABBREVIATIONS FOR THE SERVICE MANUAL
                                       SAFETY INSTRUCTION


SAFETY CHECK AFTER SERVICING
Confirm the specified insulation resistance between power cord plug prongs and externally exposed parts of the set is
greater than 10 Mohms, but for equipment with external antenna terminals (tuner, receiver, etc.) and is intended for
[C] or [a]i specified insulation resistance should be more than 2.2 Mohms (ground terminals, microphone jacks,
headphone jacks, line-in-out jacks etc.)




PRECAUTIONS DURING SERVICING
1.    Parts identified by the A symbol parts are critical for safety.
      Replace only with parts number specified.
2.    In addition to safety, other parts and assemblies are specified for conformance with such regulations as those
      applying to spurious radiation. These must also be replaced only with specified replacements.
      Examples: RF .converters, tuner units, antenna selector switches, RF cables, noise blocking capacitors, noise
                   blocking filters, etc.
      Use specified internal wiring. Note especially:
       1)   Wires covered with PVC tubing
       2)   Double insulated wires
       3)   High voltage leads
4.     Use specified insulating materials for hazardous live parts. Note especially:
       1)   Insulation Tape
       2)   PVC tubing
       3)   Spacers (Insulating Barriers)
       4)   Insulation sheets for transistors
       5)   Plastic screws for fixing microswitch (especially in turntable)
       When replacing AC primary side components (transformers, power cords, noise blocking capacitors, etc.), wrap
       ends of wires securely about the terminals before soldering.




6.     Observe that wires do not contact heat producing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).
7.     Check that replaced wires do not contact sharp edged or pointed parts.
8.     Also check areas surrounding repaired locations.
9.     Use care that foreign objects (screws, solder droplets, etc.) do not remain inside the set.
10. The LITHIUM BATTERY employed for memory back up has an explosive probability when the battery itself is
      excessive heated.
      Normally, LITHIUM BATTERY is not necessary to replace, because the life of LITHIUM BATTERY is about 10
      years.



      IN CASE OF REPLACING: RESOLDER AND SOLDER AS RECOMMENDED WAY.


                                                      Recommended way




VOLTAGE CONVERSION
Models for Canada, USA and Japan are not equipped with this facility. Each machine is preset at the factory according to
its destination, but some machines can be set to 220V or 240V as required.
If the machine's Voltage can be converted:
     Before connecting the power cord, set the VOLTAGE SELECTOR on the bottom panel for the correct Voltage is in
     dicated.




                                                  VOLTAGE SELECTOR

                                                     -SERVICE MANUAL-
                                  SECTION 1

             SERVICE MANUAL
                              TABLE OF CONTENTS


I.     SPECIFICATIONS                                                               4
II.    DISMANTLING OF UNIT                                                          5
        1. HOW TO OPEN THE FRONT PANEL                                              5
       2. HOW TO DISMANTLE THE KEYBOARD                                             5
       3. HOW TO DISMANTLE THE BEND PANEL BLOCK                                     5
III.   CONTROLS                                                                     6
IV.    THE KEYBOARD REACTION-SHIP TO EQUALLY TEMPERED SCALE
             FREQUENCIES AND MUSICAL-NOTATION                                       7
V.     PRINCIPAL PARTS LOCATION                                                     7
VI.    ADJUSTMENT                                                                   8
       1. BALANCE OF
