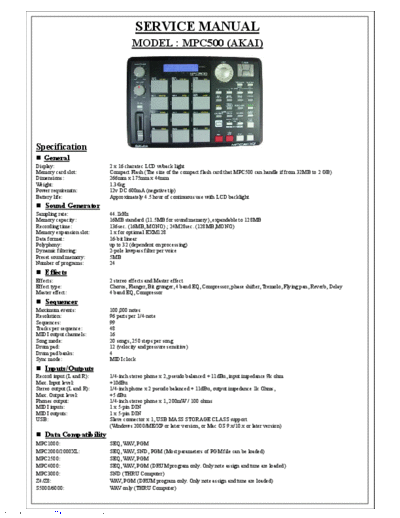

Image preview - the first page of the document
>> Download MPC-500 documenatation <<
Text preview - extract from the document
SERVICE MANUAL
MODEL : MPC500 (AKAI)
Specification
General
Display: 2 x 16 charatec LCD w/back light
Memory card slot: Compact Flash (The size of the compact flash card that MPC500 can handle if from 32MB to 2 GB)
Dimensions: 266mm x 175mm x 44mm
Weight: 1.34kg
Power requiremtn: 12v DC 600mA (negative tip)
Battery life: Approximately 4.5 hour of continuous use with LCD backlight
Sound Generator
Sampling rate: 44.1kHz
Memory capacity: 16MB standard (11.5MB for sound memory), expandable to 128MB
Recording time: 136sec. (16MB, MONO) ; 24M28sec. (128MB,MONO)
Memory expansion slot: 1 x for optional EXM128
Data format: 16-bit linear
Polyphony: up to 32 (dependent on processing)
Dynamic filtering: 2-pole lowpass filter per voice
Preset sound memory: 5MB
Number of programs: 24
Effects
Effects: 2 stereo effects and Master effect
Effect type: Chorus, Flanger, Bit grunger, 4 band EQ, Compressor, phase shifter, Tremolo, Flying pan, Reverb, Delay
Master effect: 4 band EQ, Compressor
Sequencer
Maximum events: 100,000 notes
Resolution: 96 parts per 1/4-note
Sequences: 99
Tracks per sequence: 48
MIDI output channels: 16
Song mode: 20 songs, 250 steps per song
Drum pad: 12 (velocity and pressure sensitive)
Drum pad banks: 4
Sync mode: MIDI clock
Inputs/Outputs
Record input (L and R): 1/4-inch stereo phone x 2, pseudo balanced + 11dBu, input impedance 9k ohm
Max. Input level: +10dBu
Stereo output (L and R): 1/4-inch phone x 2 pseudo balanced + 11dBu, output impedance 1k Ohms,
Max. Output level: +5 dBu
Phones output: 1/4-inch stereo phone x 1, 200mW / 100 ohms
MIDI inputs: 1 x 5-pin DIN
MIDI outputs: 1 x 5-pin DIN
USB: Slave connector x 1, USB MASS STORAGE CLASS support
(Windows 2000/ME/XP or later version, or Mac OS 9.x/10.x or later version)
Data Compatibility
MPC1000: SEQ, WAV, PGM
MPC2000/2000XL: SEQ, WAV, SND, PGM (Most parameters of PGM file can be loaded)
MPC2500: SEQ, WAV, PGM
MPC4000: SEQ, WAV, PGM (DRUM program only. Only note assign and tune are loaded)
MPC3000: SND (THRU Computer)
Z4/Z8: WAV, PGM (DRUM program only. Only note assign and tune are loaded)
S5000/6000: WAV only (THRU Computer)
Downloaded from www.Manualslib.com manuals search engine
Downloaded from www.Manualslib.com manuals search engine
Downloaded from www.Manualslib.com manuals search engine
Downloaded from www.Manualslib.com manuals search engine
Downloaded from www.Manualslib.com manuals search engine
MPC500 (AKAI) BOM
LEVEL PART NUMBER DESCRIPTION QTY REF
.1 AA406633J PE BAG 370X280X.03 PRINTING 0.006
.1 AA407212J LABEL RECYCLE PE04 1.000
.1 AA810353J LENS LED 6.000 8
.1 AA811571J CAUTION LABEL 1.000 44
.1 AA821339X SHEET POLY 0450X0450 1.000
.1 AA821858X EVA 1.000 56
.1 AA822124X LABEL FCC-S 1.000 43
.1 AA822330X BUTTON PUSH (B)-7 13.000 4
.1 AA822331X BUTTON PUSH (B)-8 9.000 41
.1 AA822367X 42P FLAT WIRE 60MM 1.000 55
.1 AA822403X INSERTION CF MPC 1.000
.1 AL7-40-0052 ADAPTOR 12VDC 600MA MPC500-UL 1.000
.1 AL7-51-0223-B START MANUAL (MPC500) 1.000
.1 AL7-51-0224-B QUICK START MANUAL (MPC500) 1.000
.1 AL7-51-0226 SAFETY INSTRUCTION 1.000
.1 AL9-63-0002 CF CARD 128MB 1.000
.1 BA71028-130 BATTERY TERMINAL 71028-130 1.000 18
.1 BA71209-130 BATTERY TERMINAL 71029-130 1.000 19
.1 BA71228-130 BATTERY TERMINAL 71228-130 1.000 23
.1 BAAR-291 FOOT 4.000 38
.1 BAS-MS-RR3NNS PAD SENSOR 1.000 13
.1 CB310S015 NESTING 1.000
.1 CGAC05310AKA01 INNER CARTON (CARTON CASE MPC50) 1.000
.1 CN0320002005 3P CONNECTOR WIRE 200MM (L4040 W901) 1.000 46
.1 CN0320002303 3P CONNECTOR WIRE 230MM (L4040 W303) 1.000 47
.1 CN0420000502 4P CONNECTOR WIRE 50MM (L4040 W107) 1.000 48
.1 CN0720001101 7P CONNECTOR WIRE 110MM (L4040 J4B ) 1.000 49
.1 CN0720001201 7P CONNECTOR WIRE 120MM (L4040 J4A) 1.000 50
.1 CN0920000901 9P CONNECTOR WIRE 90MM (L4040 W302 ) 1.000 51
.1 CN1020001002 10P CONNECTOR WIRE 100MM (L4040 W301) 1.000 52
.1 CN1020001102 10P CONNECTOR WIRE 110MM (L4040 J106 ) 1.000 53
.1 CTAC05513AKA01 OUTER CARTON (CARTON MASTER MPC) 0.500
.1 EVA1504401 SHIELD LCD EVA01 2.000 27
.1 EVA1504402 BATTERY CUSHION 3.000 20
.1 HST030012BUL HEAT SHRINKABLE TUBE 3X12MM 2.000 54
.1 K46-1 CABLE TIE 1.000 59
.1 LAC22AKA11 LABEL BARCODE-B MPC500(A) 1.000
.1 LAC67YAH261 LABEL (GREEN MARKING) 1.000
.1 LAM67AKA01 DOUBLE SIDE TAPE (SEKON) 45MM X 122MM 1.000 60
.1 LAM67AKA02 DOUBLE SIDE TAPE (SEKON) 10MM X 3MM 6.000 61
.1 LAM67AKA03 PROTECTION TAPE (SEKON) (ID-S040) 111.5MM X 37.5MM 1.000 62
.1 LAM67AKA04 LABEL STICKER FOR CF CARD 1.000
.1 MT1504308 COPPER L=18.2 4.000 30
.1 MT1504309 COPPER L=13 2.000 34
.1 MT1504310 ANGLE PCB L 1.000 16
.1 MT1504311 ANGLE PCB R 1.000 33
.1 MT1504406 HOLDER PAD 1.000 14
.1 MT1512201 SHIELD MEMORY 1.000 21
.1 MT1512202 SHIELD PCB 1.000 35
.1 MT153000301 METAL TOP MPC500 1.000 7
..2 MT1530003 METAL TOP MPC500 (R) 1.000
.1 PLMPC50001 POLY FOAM-L 1.000
.1 PLMPC50002 POLY FOAM-R 1.000
.1 PT150140301 LENS TOP 1.000 26
..2 PT1501403 LENS TOP (R) 1.000
.1 PT1504304 HOLDER LCD 1.000 29
.1 PT151060301 BUTTON CURSOR (AA822307X) 1.000 39
..2 PT1510603 BUTTON CURSOR (AA822307X) 1.000
.1 PT151060801 KNOB JOG 1.000 24
Downloaded from www.Manualslib.com manuals search engine
LEVEL PART NUMBER DESCRIPTION QTY REF
..2 PT1510608 KNOB JOG (R) 1.000
.1 PT151060901 KNOB VOLUME (A) ADD RED 1.000 9
..2 PT1510609 KNOB VOLUME (A) (R) 1.000
.1 PT151060902 KNOB VOLUME (B) ADD WHITE 1.000 10
..2 PT1510609 KNOB VOLUME (A) (R) 1.000
.1 PT151061101 KNOB SLIDE SMALL (ADD WHITE LINE) 1.000 5
..2 PT1510611 KNOB SLIDE SMALL 1.000
.1 PT1510612 BUTTON TRANSPORT (A) 2.000 25
.1 PT1510613 BUTTON TRANSPORT (B) 3.000 42
.1 PT1510615 SWITCH BUTTON 2.000 31
.1 PT152060101 SIDE CAP (SPRAYING) 2.000 6
..2 PT1520601 SIDE CAP (R) 1.000
.1 PT153010601 BATTERY DOOR (SPRAYING) 1.000 22
..2 PT1530106 BATTERY DOOR (R) 1.000
.1 PT153030201 BOTTOM (SPRAYING) 1.000 37
..2 PT1530302 BOTTOM (R) 1.000
.1 RU1504303 SILICON PAD 1.000 12
.1 SC0306PBBI SCREW 22.000 1
.1 SC0306RIBI SCREW (BLACK) 2.000 2
.1 SC0306RINI SCREW 10.000 58
.1 SC0308FBBI SCREW 6.000 3
.1 SC0308PBBI SCREW 6.000 57
.1 SD870530 LAMIN SHEET 1.000
.1 TWAL9-44-0010 LCD ASS'Y 1.000 28
..2 BC1602CHBWAJB IND LCD BC-1602C-HBWA-J-B 1.000
..2 CN1620001501 16P CONNECTOR WIRE 150MM (L4040 W105) 1.000 45
