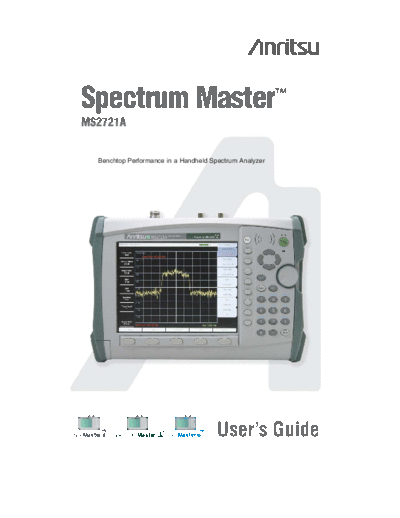

Image preview - the first page of the document
>> Download ANRITSU MS2721A USER documenatation <<
Text preview - extract from the document
Spectrum Master TM
MS2721A
Benchtop Performance in a Handheld Spectrum Analyzer
S331D Site Master SiteMaster
MS2712 MS2711D Spectrum Master SpectrumMaster
MS2712 MT8212A Cell Master CellMaster
MS2712
SiteMaster SpectrumMaster CellMaster User's Guide
WARRANTY
The Anritsu product(s) listed on the title page is (are) warranted against defects in
materials and workmanship for one year from the date of shipment.
Anritsu's obligation covers repairing or replacing products which prove to be defec-
tive during the warranty period. Buyers shall prepay transportation charges for
equipment returned to Anritsu for warranty repairs. Obligation is limited to the origi-
nal purchaser. Anritsu is not liable for consequential damages.
LIMITATION OF WARRANTY
The foregoing warranty does not apply to Anritsu connectors that have failed due to
normal wear. Also, the warranty does not apply to defects resulting from improper
or inadequate maintenance by the Buyer, unauthorized modification or misuse, or
operation outside the environmental specifications of the product. No other war-
ranty is expressed or implied, and the remedies provided herein are the Buyer's
sole and exclusive remedies.
TRADEMARK ACKNOWLEDGMENTS
Windows, Windows 2000 and Windows XP are registered trademarks of the
Microsoft Corporation. Intel Pentium is a trademark of Intel Corporation. VxWorks is
a registered trademark, and WindML is a trademark of Wind River Systems, Inc. NI
is a trademark of National Instruments. Spectrum Master is a trademark of Anritsu
Company.
NOTICE
Anritsu Company has prepared this manual for use by Anritsu Company personnel
and customers as a guide for the proper installation, operation and maintenance of
Anritsu Company equipment and computer programs. The drawings, specifications,
and information contained herein are the property of Anritsu Company, and any
unauthorized use or disclosure of these drawings, specifications, and information is
prohibited; they shall not be reproduced, copied, or used in whole or in part as the
basis for manufacture or sale of the equipment or software programs without the
prior written consent of Anritsu Company. All other trademarks contained herein are
the property of their respective owners.
UPDATES
Updates to this manual, if any, may be downloaded from the Anritsu internet site at:
http://www.us.anritsu.com.
VxWorks Runtime License WindML Target License
2000-1189 2000-1372
NI Device License
2000-1486
Equipment marked with the Crossed-out Wheelie
Bin symbol complies with the European
Parliament and Council Directive 2002/96/EC (the
"WEEE Directive") in the European Union.
For Products placed on the EU market after
August 13, 2005, please contact your local Anritsu
representative at the end of the product's useful
life to arrange disposal in accordance with your
initial contract and the local law.
For Chinese Customers Only YLYB
Table of Contents
Chapter 1 - General Information
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Calibration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
ESD Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Soft Carrying Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Tilt Bail Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Anritsu Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Chapter 2 - Quick Start Guide
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Turning the MS2721A On for the First Time. . . . . . . . . . . . . . . . . . 2-1
Front Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Display Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Test Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Symbols and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Making Spectrum Analyzer Measurements . . . . . . . . . . . . . . . . . . 2-10
Chapter 3 - Key Functions
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
BW (Bandwidth). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Freq (Frequency). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Marker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Measure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Preset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Span . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Sweep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
March 2007 10580-00103
Copyright 2004-2007 Anritsu Company Revision: J
i
Chapter 4 - Measurement Fundamentals
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Resolution Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Video Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Sweep Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Attenuator Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Preamplifier Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Chapter 5 - Field Measurements
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Occupied Bandwidth Measurement . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Channel Power Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
CDMA Channel Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
CDMA Channel Power Measurement . . . . . . . . . . . . . . . . . . . . . . . 5-3
GSM Channel Power Measurement . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
AMPS Channel Power Measurement . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Adjacent Channel Power Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Adjacent Channel Power Measurement . . . . . . . . . . . . . . . . . . . . . . 5-5
GSM Adjacent Channel Power Measurement . . . . . . . . . . . . . . . . . 5-6
AMPS (TDMA) Adjacent Channel Power Measurement . . . . . . . . 5-7
Out-of-Band Spurious Emission Measurement . . . . . . . . . . . . . . . . 5-8
In-band/Out-of-Channel Measurements . . . . . . . . . . . . . . . . . . . . . 5-10
In-band Spurious Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Field Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
AM/FM/SSB Demodulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
Carrier to Interference Ratio Measurement . . . . . . . . . . . . . . . . . . 5-13
Chapter 6 - Interference Analysis Measurements
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Freq Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Amplitude Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
BW (Bandwidth) Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Measurements Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Spectrum Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Spectrogram Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Signal Strength Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
RSSI (Received Signal Strength Indicator) Menu . . . . . . . . . . . . . 6-13
Marker Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Spectrogram Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
RSSI Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Chapter 7 - Channel Scanner Measurements
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Scanner: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Amplitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
ii
Custom Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Sample Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Custom Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Chapter 8 - Master Software Tools
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Using Master Software Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Language Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Signal Standards Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
Appendix A - Signal Standards
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Appendix B - Error Messages
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Self Test or Application Self Test Errors . . . . . . . . . . . . . . . . . . . . . 6-1
Operation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Interference Analyzer Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Channel Scanner Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Index
iii
iv
Chapter 1
General Information
Introduction
This chapter provides a description, performance specifications, optional accessories, pre-
ventive maintenance, and calibration requirements for the Anritsu Handheld Spectrum Ana-
lyzer model listed below. Throughout this manual, this instrument may be referred to as a
Spectrum Master.
Model Frequency Range
MS2721A 100 kHz to 7.1 GHz
Description
Spectrum Master is a synthesizer-based hand held spectrum analyzer that provides quick and
accurate measurement results. Measurements can be easily made by using the main instru-
ment functions: frequency, span, amplitude and bandwidth. Dedicated keys for common
functions and a familiar calculator-type keypad are available for fast data entry.
Time and date stamping of measurement data is automatic. The internal memory provides
for the storage and recall of more than 1000 measurement setups and more than 1000 traces.
The bright daylight-viewable, high-resolution color liquid crystal display (LCD) provides
easy viewing in a variety of lighting conditions. Spectrum Master is capable of up to three
hours of continuous operation from a fully charged battery and can be operated from a 12
VDC source, which also simultaneously charges the battery.
Spectrum Master is designed for monitoring, measuring, and analyzing signal environments.
Typical measurements include: in-band interference, transmit spectrum analysis, plus cell
site and 802.11a/b/g interference testing. A full range of marker capabilities such as peak,
center and delta functions are provided for faster, more comprehensive analysis of displayed
signals. Upper and lower multi-segmented limit lines are available to create quick, simple
pass/fail measurements. A menu option provides for an audible alert when the limit value is
exceeded.
Anritsu Master Software Tools, a PC-based software program, provides for storing measure-
ment data. Master Software Tools can also convert the Spectrum Master display into several
graphic formats.
Measurements may be stored in either internal memory or the external Compact Flash.
Stored measurements can be downloaded to a PC using the included USB and Ethernet
cables. Once stored, the measurement can then be displayed, scaled, or enhanced with mark-
ers and limit lines. Historical graphs can be overlaid with current data using the PC mouse in
a drag-and-drop fashion. The underlying data can be extracted and used in spreadsheets or
for other analytical tasks.
1-1
Accessories
The following standard accessories are supplied with the MS2721A:
Part Number Description
10580-00103 MS2721A User's Guide
61382 MS2721A Soft Carrying Case
2300-498 Master Software Tools Program CD ROM
633-44 MS2721A Rechargeable Li-Ion Battery
40-168 MS2721A AC-DC Adapter
806-141 MS2721A Automotive Cigarette Lighter 12 Volt DC Adapter
2000-1360 USB A/5-pin mini-B Cable
2000-1371 Ethernet Cable, 7 feet (213 cm)
1091-27 Type-N male to SMA female Adapter
1091-172 Type-N male to BNC female Adapter
2000-1358 64 MB Compact Flash Memory Module
64343 Tilt Bail Stand
One year Warranty (includes battery, firmware, and software)
CAUTION
When using the Automotive Cigarette Lighter 12 VDC Adapter, Anritsu Part Number
806-141, always verify that the supply is rated for a minimum of 60 Watts @ 12 VDC,
and that the socket is clear of any dirt or debris. If the adapter plug becomes hot to the
touch during operation, discontinue use immediately.
1-2
The following optional accessories are available for the MS2721A:
Part Number Description
42N50A-30 30 dB, 50W, Bi-dir., DC-18 GHz, N(m) to N(f) Attenuator
34NN50A Precision Adapter, DC to 18 GHz, 50 , N(m) to N(m)
34NFNF50C Precision Adapter, DC to 18 GHz, 50 , N(f) to N(f)
15NNF50-1.5B Test port cable armored, 1.5 meter, N(m) to N(f), 18.0 GHz
15NN50-1.5C Test port cable armored, 1.5 meter, N(m) to N(m), 6 GHz
15NN50-3.0C Test port cable armored, 3.0 meter, N(m) to N(m), 6 GHz
15NN50-5.0C Test port cable armored, 5.0 meter, N(m) to N(m), 6 GHz
15NNF50-1.5C Test port cable armored, 1.5 meter, N(m) to N(f), 6 GHz
15NNF50-3.0C Test port cable armored, 3.0 meter, N(m) to N(f), 6 GHz
15NNF50-5.0C Test port cable armored, 5.0 meter, N(m) to N(f), 6 GHz
15ND50-1.5C Test port cable armored, 1.5 meter, N(m) to 7/16 DIN(m),
6.0 GHz
15NDF50-1.5C Test port cable armored, 1.5 meter, N(m) to 7/16 DIN(f),
6.0 GHz
12N50-75B 75 Adapter, 7.5 dB loss
510-90 Adapter, 7/16 DIN (f) to N(m), DC to 7.5 GHz, 50
510-91 Adapter, 7/16 DIN (f)-N(f), DC to 7.5 GHz, 50
510-92 Adapter, 7/16 DIN (m)-N(m), DC to 7.5 GHz, 50
510-93 Adapter, 7/16 DIN(m)-N(f), DC to 7.5 GHz, 50
510-96 Adapter 7/16 DIN (m) to 7/16 DIN (m), DC to 7.5 GHz,
50
510-97 Adapter 7/16 DIN (f) to 7/16 DIN (f), 7.5 GHz
61382 Spare Soft Carrying Case
40-168 Spare AC/DC Adapter
806-141 Spare Automotive Cigarette Lighter 12 Volt DC Adapter
760-235 MS2721A Transit Case
2300-498 Master Software Tools Program CD ROM
10580-00103 Anritsu User's Guide, Model MS2721A (spare)
10580-00104 Anritsu Programming Manual, Model MS2721A
10580-00105 Anritsu Maintenance Manual, Model MS2721A
633-44 Rechargeable battery, Li-Ion
2000-1374 Dual Battery charger, Li-Ion with universal power supply
1-3
Part Number Description
2000-1030 Portable antenna, 50 , SMA (m) 1.71-1.88 GHz
2000-1031 Portable antenna, 50 , SMA (m) 1.85-1.99 GHz
2000-1032 Portable antenna, 50 , SMA (m) 2.4-2.5 GHz
2000-1035 Portable antenna, 50 , SMA (m) 896-941 MHz
2000-1200 Portable antenna, 50 , SMA (m) 806-869 MHz
2000-1361 Portable Antenna, 50 , SMA (m) 5725-5825 MHz
2000-1358 64 MB Compact Flash Memory Module
2000-1411 Portable Yagi Antenna, 10 dBd, N(f), 822 to 900 MHz
2000-1412 Portable Yagi antenna, 10 dBd, N(f), 885 to 975 MHz
2000-1413 Portable Yagi antenna, 10 dBd, N(f), 1.71 to 1.88 GHz
2000-1414 Portable Yagi antenna, 9.3 dBd, N(f), 1.85 to 1.99 GHz
2000-1415 Portable Yagi antenna, 10 dBd, N(f), 2.4 to 2.5 GHz
2000-1416 Portable Yagi antenna, 10 dBd, N(f), 1.92 to 2.23 GHz
1-4
Performance Specifications
Frequency
Frequency Range: 100 kHz to 7.1 GHz
Tuning Range: 9 kHz to 7.1 GHz
Tuning Resolution: 1 Hz
Frequency Reference: Aging: ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
