Service Manuals, User Guides, Schematic Diagrams or docs for : BEKO TV 14.2 chassis beko_142<< Back
| HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download
Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing.
If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

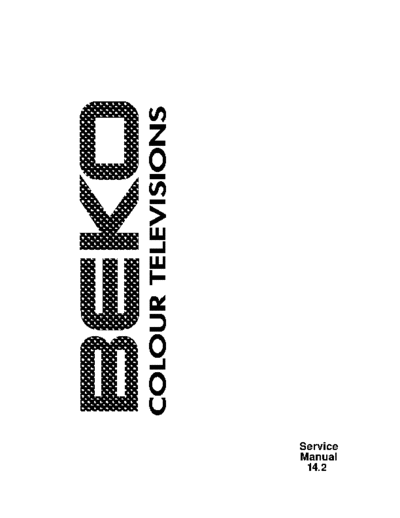

Image preview - the first page of the document
>> Download beko_142 documenatation <<Text preview - extract from the document
Safety Instructions 3
Technical Specifications 4
Pin Voltages of IC's 5
Pin Voltages of Some Transistors 8
Electrical and Service Adjustments 12
Trouble Shooting Guide 16
Parts List 23
Circuit Diagram PIP Module 30
Circuit Diagrams Attached
27/05/2002, Version 2
GENERAL GUIDELINES connectors, control shafts etc. When the
exposed metallic part a return path to the
1. It is advised to insert an isolation transformer chassis the reading should be between
in the AC supply before servicing a hot 4Mohm and the 20Mohm. When the
chassis. exposed metal does not have a return path
to the chassis, the reading must be infinite.
2. Potentials as high as 33KV are present when
this receiver is in operation. Operation of the LEAKAGE CURRENT HOT CHECK
receiver without the rear cover involves the
danger of a shock hazard from the receiver 1. Plug the AC cord directly in to the AC
power supply. Servicing should not be outlet. Do not use an isolation transformer
attempted by any one who is not for this check.
competent with the precautions necessary 2. Connect a 2Kohm 10W resistor in series with
when working on the high voltage an exposed metallic part on the receiver
equipment. Always discharge the anode of and an earth, such as a water pipe.
the tube. 3. Use an AC voltmeter with high impedance
to measure the potential across the resistor.
3. When servicing observe the original lead 4. Check each exposed metallic part and
dress in the high voltage circuits. If a short check the voltage at the each point.
circuit is found, replace all the parts which 5. Reverse the AC plug at the outlet and
have been overheated or damaged by the repeat each of the above measurements.
short circuit. 6. The potential at the any point should not
exceed 1.4 Vrms. In case a measurement is
4. Always use the manufacturer's replacement outside the limits specified, there is the
safety components. The critical safety possibility of a shock hazard, and the
components marked with on the receiver should be repaired and rechecked
schematics diagrams should not be before it is returned to the customer.
replaced by other substitutes. Other
substitute may create the electrical shock,
fire or other hazards. Take attention to
replace the spacers with the originals. HOT CHECK CIRCUIT
Furthermore where a short circuit has AC-Voltmeter
occurred, replace those components that TO INSTRUMENTS
indicate evidence of overheating. EXPOSED
METALLIC PARTS Water pipe
5. After servicing, see that all the protective
devices such as insulation barriers, insulation
papers, shields and isolation R-C 2 K Ohm
combinations are correctly installed.
6. When the receiver is not being used for a
long time of period of time, unplug the
power cord from the AC outlet.
X-RAY RADIATION WARNING
The primary source of X-ray radiation in this receiver
7. After servicing make the following leakage
is the picture tube. The chassis is specially
current checks to prevent the customer
constructed to limit X-ray radiation. For continued
from being exposed to shock hazard.
X-ray radiation protection, replace the tube with
the same type of the original one.
LEAKAGE CURRENT COLD CHECK
1. Unplug the AC cord and connect a jumper
AFTER REMOVAL OF THE ANODE CAP, DISCHARGE
between the two prongs of the plug.
THE ANODE OF THE PICTURE TUBE AND THE ANODE
CAP TO THE METAL CHASSIS, CRT SHIELD, OR THE
2. Turn the receiver's power switch on.
CARBON PAINTED ON THE CRT WITH A HIGH
VOLTAGE PROBE AND MULTIMETER (SELECT VDC)
3. Measure the resistance value with an
AND THEN SHORT CIRCUIT DIRECTLY TO DISCHARGE
ohmmeter, between the jumpered AC plug
and each exposed metallic cabinet part on
the receiver, such as screw heads, aerials,
Power source: 220-240 VAC, 50-60Hz
Power consumption (max.) 1: 120 W 21" Pure Flat
125 W 25", 28" Mono
145 W 25", 28" 4/3, 29" Pure Flat
140 W 29" Super Flat
150 W 28" 16/9 Super Flat
155 W 28" 16/9 Pure Flat, 32" Super Flat
165 W 32" Pure Flat
160 W 33"
Standby power consumption : 3W
Aerial impedance : 75Ohm, coaxial type
Receiving system 2: PAL BG
PAL SECAM BG
PAL SECAM BG DK
PAL SECAM BG LL'
Receiving channels: VHF BAND I , CH2-4
VHF BAND III , CH5-12
CABLE TV S1-41
UHF BAND CH21-69
NTSC Playback Frequencies: 3.58&4.43 MHz
Audio outputs : Stereo : 2 x 10W RMS at %10 THD (Except 21" Pure Flat)
2 x 7W RMS at %10 THD (21" Pure Flat)
+ 20W RMS at %10 THD (if subwoofer available)
Mono : 2 x 7W RMS at %10 THD
High Voltage : 28.5
