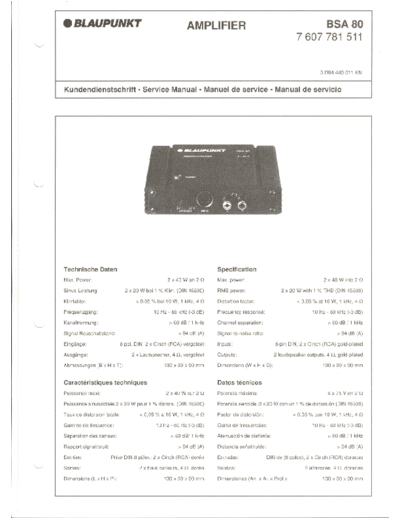

>> Download BSA80 documenatation <<Text preview - extract from the document . BLAUPUNKT AMPLIFIER BSA 80
7 607 781 511
"-../
3 D94 440 011 KN
Kundendienstschrift. Service Manual. Manuel de service. Manualde servicio
~
Technische Daten Specification
Max. Power: 2 x 40 W an 2 n Max. power: 2 x 40 W into 2 n
Sinus-Leistung: 2 x 20 W bei 1 % Klirr. (DIN 45500) RMS power: 2 x 20 W with 1 % THD (DIN 45500)
Klirrfaktor: < 0.05 % bei 10 W, 1 kHz, 4 n Distortion factor: < 0.05 % at 10 W, 1 kHz, 4 n
Frequenzgang: 10 Hz - 60 kHz (-3 dB) Frequencyresponse: 10 Hz - 60 kHz (-3 dB)
Kanaltrennung: > 60 dB / 1 kHz Channel separation: > 60 dB / 1 kHz
' /
Signal Rauschabstand: > 94 dB (A) Signal-to-noise ratio: > 94 dB (A)
Eingange: 8 paI. DIN, 2 x Cinch (RCA) vergoldet Inputs: 8-pin DIN, 2 x Cinch (RCA) gold-plated
Ausgange: 2 x Lautsprecher, 4 n, vergoldet Outputs: 2 loudspeaker outputs, 4 n, gold-plated
Abmessungen (B x H x T): 130 x 30 x 90 mm Dimensions (W x H x D): 130 x 30 x 90 mm
