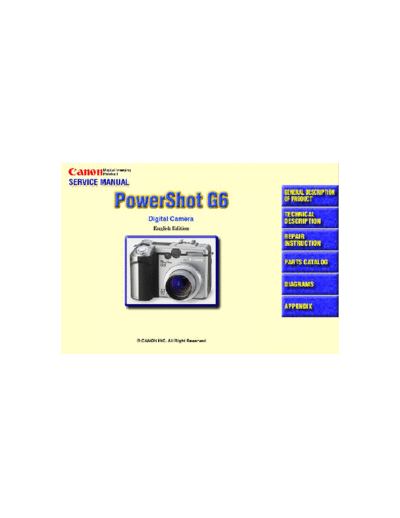

Image preview - the first page of the document
>> Download CANON_POWERSHOT_G6 documenatation <<
Text preview - extract from the document
PARTS CATALOG
c CANON INC., 2004
CONTENTS
PowerShot G6
Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1
Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2
Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3
LCD UNIT SECTION ----------------------------------------------------------------------------------------------------------- Pg4
TOP COVER SECTION -------------------------------------------------------------------------------------------------------- Pg5
FUSE ------------------------------------------------------------------------------------------------------------------------------- Pg6
Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg7
Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg8
Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg9
Service Tools-2 ---------------------------------------------------------------------------------------------------------------------- Pg10
Category of CLASS
A: Frequency of use: High
B: Frequency of use: Middle
C: Frequency of use: Low
D: Safety-related critical parts
E: Consumable parts
F: Standard screws and washers
S: Supply of the parts is limited
Y: Service Tools
PowerShot G6
Pg1
Casing Parts
107
e
106
105 107
6
103
See Pg5
102
4
107 105 f
8
b
e 105
f 105 a
g
107 104 d
3 103
b
105 c
107 7
10
2 5
101
107
105
See Pg2 9
105 a
c d
g
107
105 11 103
15 101
108 14
103 103
13
1
12
PowerShot G6
Pg1
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CD3-2251-000 B 1 RING, FRONT
2 CM1-2541-000 B 1 COVER UNIT, FRONT
3 CD3-2168-000 B 1 COVER, GRIP
4 CM1-2539-000 B 1 COVER UNIT, CARD SLOT
5 CD3-2163-000 C 1 HOLDER, CARD SLOT SHAFT
6 CM1-2543-000 B 1 COVER UNIT, REAR
7 CY1-6362-000 B 1 PLATE, BODY NUMBER #13011xxxxx
8 CM1-2547-000 C 1 PLATE UNIT, REAR
9 CM1-2540-000 B 1 COVER UNIT, SIDE
10 CD3-2244-000 B 1 BASE, STRAP RIGHT
11 CD3-2307-000 C 1 SPRING, JACK COVER
12 CM1-2538-000 B 1 COVER UNIT, BATTERY
13 CD3-2146-000 C 1 SHAFT, BATTERY COVER
14 CD3-2148-000 C 1 SPRING, BATTERY COVER
15 CD3-2157-000 B 1 HOLDER, DATE BATTERY
101 CD1-4024-000 F 2 SCREW
102 CD3-2309-000 F 2 SCREW
103 CD3-2564-000 F 6 SCREW
104 CD3-3650-000 F 1 SCREW
105 XA1-7170-287 F 10 SCREW, CROSS-RECESS, PH
106 XA4-5170-357 F 1 SCREW
107 XA4-9170-407 F 9 SCREW, CROSS-RECESS, PH
108 CD1-4045-000 F 1 SCREW
PowerShot G6
Pg2
Internal Parts-1
5 104
4
b
8
6 102
9
10
7
101
101
104
12
104 11
2
See Pg3
b
a
104
104
a 13
3
1
103
PowerShot G6
Pg2
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CM1-2537-000 C 1 BARREL UNIT, MAIN
2 CM1-2528-000 B 1 FLASH UNIT
3 CM1-2530-000 C 1 SPEAKER UNIT
4 CM1-2592-000 C 1 FINDER UNIT
5 CD1-3869-000 C 1 HOLDER, LED
6 CM1-2638-000 C 1 OPTICAL UNIT
7 CM1-2746-000 B 1 LENS UNIT, FRONT
8 CS8-5209-000 C 1 SPRING, CCD
9 CD3-2260-000 C 1 SHEET, MAIN
10 CM1-2594-000 C 1 PCB ASS'Y, MAIN
11 CK1-1218-000 C 1 FPC, MAIN-JACK
12 WE8-6227-000 C 1 SHIELD, NOISE
13 CD3-2248-000 C 1 SPRING, MAIN GND
101 CD3-3650-000 F 3 SCREW
102 CD3-3651-000 F 3 SCREW
103 XA1-7170-287 F 3 SCREW, CROSS-RECESS, PH
104 XA4-9170-407 F 6 SCREW, CROSS-RECESS, PH
PowerShot G6
Pg3
Internal Parts-2
9
106
3 102
104
2
101
See Pg4
105
7
6 1
4
101 105 8
101 103
5
PowerShot G6
Pg3
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CM1-2596-000 C 1 PCB ASS'Y, FLASH
2 CM1-2595-000 C 1 PCB ASS'Y, DC/DC CONVERTER
3 CM1-2531-000 C 1 BATTERY BOX UNIT
4 CD3-2245-000 C 1 BASE, TRIPOD
5 CM1-2598-000 C 1 PCB ASS'Y, JACK
6 CD3-3544-000 C 1 SHIELD, NOISE
7 CK2-2196-000 C 1 LEAD ASS'Y, JACK
8 CD3-2243-000 C 1 FRAME, MAIN
9 CD3-2225-000 B 1 COVER, HINGE
101 CD3-3650-000 F 5 SCREW
102 CD3-3651-000 F 2 SCREW
103 XA1-7170-287 F 2 SCREW, CROSS-RECESS, PH
104 XA4-5170-357 F 1 SCREW
105 XA4-9170-407 F 2 SCREW, CROSS-RECESS, PH
106 CD3-2308-000 B 2 SCREW
PowerShot G6
Pg4
LCD UNIT SECTION
1
a
101
c
3
b
N.S
b
a
2
c
101
4
N.S : N.S Stand for No Stock
PowerShot G6
Pg4
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CM1-2534-000 B 1 LCD UNIT
CM1-2534-001 B 1 LCD UNIT (SELECTION)
2 CD3-2224-000 B 1 COVER, LCD FRONT
3 CD3-2235-000 B 1 COVER, LCD REAR
4 CM1-2533-000 C 1 HINGE UNIT, LCD
101 XA1-7170-257 G 3 SCREW, CROSS-RECESS, PH
PowerShot G6
Pg5
TOP COVER SECTION
1
101
2 3
4
5
6
8
7
106 104
103 102
104
105
PowerShot G6
Pg5
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CM1-2750-000 B 1 COVER UNIT, TOP SUB
2 CB1-6258-000 C 1 BASE, ACCESSORY SHOE
3 CB1-3390-000 B 1 SHOE ACCESSORY
4 CD1-4026-000 B 1 SPRING, ACCESSORY SHOE
5 CS8-5287-000 C 1 SPRING, BLACK/WHITE LCD
6 CD3-2188-000 B 1 WINDOW, BLACK/WHITE LCD
7 CD3-2185-000 B 1 SHEET, BLACK/WHITE LCD WINDOW
8 CM1-2546-000 C 1 LCD UNIT, BLACK/WHITE
101 XA1-3170-407 F 4 SCREW, CROSS-RECESS, FCH
102 XA4-5140-357 F 1 SCREW M14X3.5
103 XA4-9140-307 F 2 SCREW
104 XA4-9140-407 F 2 SCREW
105 XA4-9170-407 F 1 SCREW, CROSS-RECESS, PH
106 XA4-9170-457 F 1 SCREW, CROSS-RECESS, PH
PowerShot G6
Pg6
FUSE
DC/DC COVERTER PCB ASS'Y
1
PowerShot G6
Pg6
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 VD7-2243-001 C 2 FUSE, LITTEL 0494003.NR
PowerShot G6
Pg7
Accessories-1
Neck Strap USB Interface Cable Battery Pack BP-511A
NS-DC3 IFC-400PCU
N.S
1 N.S
5
Lens Cap AV Cable AVC-DC300 Battery Charger CG-580
2
N.S
N.S
CF Card FC-32MH Wireless Controller Battery Charger CB-5L
WL-DC100
N.S
3
N.S
N.S N.S
Canon Digital Camera CF CASE AC Cable
Solution Disk,
ArcSoft camera Suite Disk
N.S
4 6
7
8
9
10
PLUG TYPE
N.S 11
N.S : N.S Stand for No Stock
PowerShot G6
Pg7
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 C84-1253-000 B 1 STRAP, NECK NS-DC3
2 C84-1267-000 B 1 CAP UNIT, LENS
3 CY1-6074-000 B 1 HOLDER, BATTERY
4 FC2-9610-000 B 1 CASE, CF
5 DA3-1929-000 C 1 COVER, TERMINAL BP-514/BP-511A
6 D82-0641-000 C 1 CABLE, AC, JAPAN FOR JAPAN
7 WT3-5063-000 C 1 CABLE, AC, USA FOR USA, CANADA
8 D82-0643-000 C 1 CABLE, AC, EUROPE FOR EUROPE, ASIA
9 D82-0644-000 C 1 CABLE, AC, UK FOR ASIA
10 D82-0645-001 C 1 CABLE, AC, AUSTRALIA FOR AUSTRALIA
11 WT3-5087-000 C 1 CABLE, AC, CHINA FOR CHINA
PowerShot G6
Pg8
Accessories-2
Compact Power Adapter CA-560 Conversion Lens Adapter LA-DC58D
1 N.S
2
N.S
Wide Converter WC-DC58N
AC Cable
11
3
4
5
PLUG TYPE 6 N.S
7
8
12
Charger Adapter/Car Battery Cable Kit Tele Converter TC-DC58N
CR-560
13
N.S
9
DC CABLE N.S
10
CB-560 12
Lens Hood LH-DC30
N.S
N.S : N.S Stand for No Stock
PowerShot G6
Pg8
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 D89-0900-000 C 1 CORE, FERRITE
2 DY4-4763-000 C 1 CORD, DC
3 D82-0641-000 C 1 CABLE, AC, JAPAN FOR JAPAN
4 WT3-5063-000 C 1 CABLE, AC, USA FOR USA, CANADA
5 D82-0643-000 C 1 CABLE, AC, EUROPE FOR EUROPE, ASIA
6 D82-0644-000 E 1 CABLE, AC, UK FOR ASIA
7 D82-0645-001 C 1 CABLE, AC, AUSTRALIA FOR AUSTRALIA
8 WT3-5087-000 C 1 CABLE, AC, CHINA FOR CHINA
9 DY1-8244-000 C 1 DC CABLE
10 DY1-8243-000 C 1 CAR BATTERY CABLE CB-560
11 CD1-4929-000 B 1 CAP, FRONT
12 CD1-4931-000 B 2 CAP, REAR
13 CD1-4933-000 B 1 CAP, FRONT
