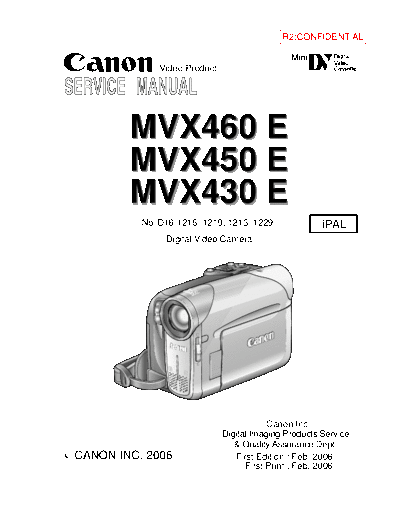

Image preview - the first page of the document
>> Download mvx460_450_430_152 documenatation <<
Text preview - extract from the document
R2:CONFIDENTIAL
Video Product
MVX460 E
MVX450 E
MVX430 E
No. D16-1216, 1219, 1213, 1229 iPAL
Digital Video Camera
Canon Inc.
Digital Imaging Products Service
& Quality Assurance Dept.
c CANON INC. 2006 First Edition : Feb. 2006
First Print : Feb. 2006
GENERAL DESCRIPTION OF PRODUCT
CONTENTS
1. Product Overview -------------------------------------------------------------------------------------------------------------------------------- 1
1-1 Development Concept ------------------------------------------------------------------------------------------------------------------- 1
1-2 Main Features ---------------------------------------------------------------------------------------------------------------------------- 2
1-2-1 High Image Quality ----------------------------------------------------------------------------------------------------------- 2
1-2-2 Advanced Functions and Comfortable Operation ------------------------------------------------------------------------- 2
1-3 Main Specifications ---------------------------------------------------------------------------------------------------------------------- 4
1-4 Function and Performance List --------------------------------------------------------------------------------------------------------- 5
2. Performance / Functions ----------------------------------------------------------------------------------------------------------------------- 11
3. Compatibility with new standard (HDV recording tapes) -------------------------------------------------------------------------------- 23
3-1 Background ------------------------------------------------------------------------------------------------------------------------------ 23
3-2 Compatibility with HDV tape alarm indication ------------------------------------------------------------------------------------ 23
3-3 Recording standards compatible with alarm indication ---------------------------------------------------------------------------- 23
3-4 Details ----------------------------------------------------------------------------------------------------------------------------------- 23
3-4-1 During Dubbing -------------------------------------------------------------------------------------------------------------- 23
3-4-2 During playback or special playback (except for Rec search) --------------------------------------------------------- 23
3-4-3 During HDV signal input --------------------------------------------------------------------------------------------------- 23
4. Wide-screen TV (16:9) output support ----------------------------------------------------------------------------------------------------- 24
4-1 How to select TV type ---------------------------------------------------------------------------------------------------------------- 24
4-2 Details ----------------------------------------------------------------------------------------------------------------------------------- 24
4-3 Cautions --------------------------------------------------------------------------------------------------------------------------------- 24
5. Panel Display ----------------------------------------------------------------------------------------------------------------------------------- 25
5-1 Overview of MVX460 E, MVX450 E, and MVX430 E LCD display --------------------------------------------------------- 25
5-2 Overview of MVX460 E, MVX450 E, and MVX430 E color viewfinder ----------------------------------------------------- 25
6. System Diagram -------------------------------------------------------------------------------------------------------------------------------- 26
MVX460 E, MVX450 E, MVX430 E
GENERAL DESCRIPTION OF PRODUCT
1. Product Overview
1-1 Development Concept
Compact Wide Mega Zoom
Record all the thrills and exciting moments in wide format!
It's light, it's small and Get ready to have even
it's so easy to carry around! more fun shooting!
Megapixel quality and high- Optical 20x zoom
magnification zoom housed in a High-image-quality wide mode
compact and lightweight body Twin white LEDs
MVX460 E,
MVX450 E,
All set for fabulous shots MVX430 E
in wide format! Simple and convenient
Color viewfinder supports user interface
16:9 LCD panel/16:9 display
Letter-box line out put
Camcorder basics evolution model
1
MVX460 E, MVX450 E, MVX430 E
GENERAL DESCRIPTION OF PRODUCT
1-2 Main Features
1-2-1 High Image Quality
(1) Total pixels/CCD size
Approx. 1.33 megapixels, 1/5-inch CCD (complementary color filter)
(2) Number of effective pixels
CARD : Approx. 1.00 megapixel (1152 [H] ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
