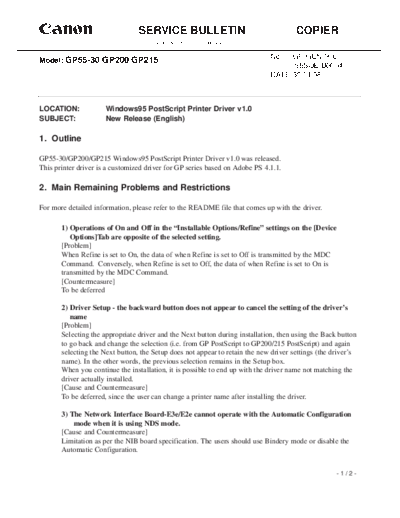

Image preview - the first page of the document



>> Download gpgen-06 documenatation <<

Text preview - extract from the document

Canon                            SERVICE BULLETIN                                     COPIER
                                     Issued by Canon Europa N.V.

                                                                             No.:  GP-GEN-006
Model: GP55-30/GP200/GP215
                                                                                   (98SQE-B0004)
                                                                             DATE: 30.01.98



LOCATION:             Windows95 PostScript Printer Driver v1.0
SUBJECT:              New Release (English)

1. Outline

GP55-30/GP200/GP215 Windows95 PostScript Printer Driver v1.0 was released.
This printer driver is a customized driver for GP series based on Adobe PS 4.1.1.

2. Main Remaining Problems and Restrictions

For more detailed information, please refer to the README file that comes up with the driver.

       1) Operations of On and Off in the "Installable Options/Refine" settings on the [Device
          Options]Tab are opposite of the selected setting.
       [Problem]
       When Refine is set to On, the data of when Refine is set to Off is transmitted by the MDC
       Command. Conversely, when Refine is set to Off, the data of when Refine is set to On is
       transmitted by the MDC Command.
       [Countermeasure]
       To be deferred

       2) Driver Setup - the backward button does not appear to cancel the setting of the driver's
          name
       [Problem]
       Selecting the appropriate driver and the Next button during installation, then using the Back button
       to go back and change the selection (i.e. from GP PostScript to GP200/215 PostScript) and again
       selecting the Next button, the Setup does not appear to retain the new driver settings (the driver's
       name). In the other words, the previous selection remains in the Setup box.
       When you continue the installation, it is possible to end up with the driver name not matching the
       driver actually installed.
       [Cause and Countermeasure]
       To be deferred, since the user can change a printer name after installing the driver.

       3) The Network Interface Board-E3e/E2e cannot operate with the Automatic Configuration
           mode when it is using NDS mode.
       [Cause and Countermeasure]
       Limitation as per the NIB board specification. The users should use Bindery mode or disable the
       Automatic Configuration.


                                                                                                    -1/2-
                                                                     GP-GEN-006

3. Combinations of ROMs

    1) GP200/215 Series

    GP200/215    IP       Ver.45.02 and later
                 D-CON    Ver.35.04 and later
                 PRCON    Ver.7.01
    PS/PCL                Ver.4.01
    PCL5e                 Ver.4.01
    NIB-E3e               Ver.2.24

    2) GP55/30 Series

    GP55F        MMI      Ver.50.18             MDC NCORE     Ver.90.01
                 IP       Ver.43.01                 NIB-E2    Ver.31.04
                 D-Con    Ver.22.01                 NIB-E2e   Ver.2.25
                                                    PSPCL     Ver.15.11
    GP30F        ICORE    Ver.32.01 and later       PCL5e     Ver.15.12
                 IP       Ver.17.01 and later
                 D-Con    Ver.3.01




                                                                           -2/2-
