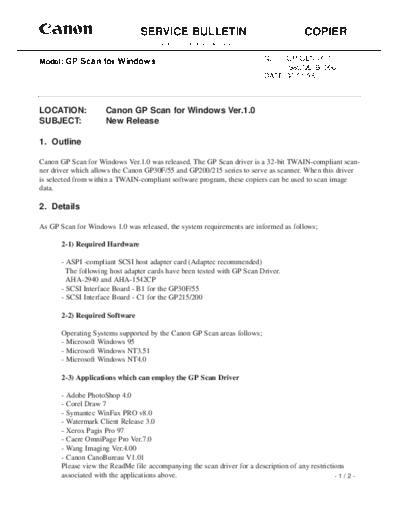

Image preview - the first page of the document
>> Download gpgen-07 documenatation <<
Text preview - extract from the document
Canon SERVICE BULLETIN COPIER
Issued by Canon Europa N.V.
Model: GP Scan for Windows No.: GP-GEN-007
(98SQE-B0006)
DATE: 30.01.98
LOCATION: Canon GP Scan for Windows Ver.1.0
SUBJECT: New Release
1. Outline
Canon GP Scan for Windows Ver.1.0 was released. The GP Scan driver is a 32-bit TWAIN-compliant scan-
ner driver which allows the Canon GP30F/55 and GP200/215 series to serve as scanner. When this driver
is selected from within a TWAIN-compliant software program, these copiers can be used to scan image
data.
2. Details
As GP Scan for Windows 1.0 was released, the system requirements are informed as follows;
2-1) Required Hardware
- ASPI -compliant SCSI host adapter card (Adaptec recommended)
The following host adapter cards have been tested with GP Scan Driver.
AHA-2940 and AHA-1542CP
- SCSI Interface Board - B1 for the GP30F/55
- SCSI Interface Board - C1 for the GP215/200
2-2) Required Software
Operating Systems supported by the Canon GP Scan areas follows;
- Microsoft Windows 95
- Microsoft Windows NT3.51
- Microsoft Windows NT4.0
2-3) Applications which can employ the GP Scan Driver
- Adobe PhotoShop 4.0
- Corel Draw 7
- Symantec WinFax PRO v8.0
- Watermark Client Release 3.0
- Xerox Pagis Pro 97
- Caere OmniPage Pro Ver.7.0
- Wang Imaging Ver.4.00
- Canon CanoBureau V1.01
Please view the ReadMe file accompanying the scan driver for a description of any restrictions
associated with the applications above. -1/2-
GP-GEN-007
3. Main Remaining Problems and Restrictions
1) The image margin width achieved is currently a function of the scan resolution chosen.
When Scan is executed with low resolution such as 150dpi in the GP215/200 series, the
margin on the image is enlarged relative to the same image scanned at a higher resolution.
The two examples here show the relation between scan resolution and margin width.
Scan Resolution Margin Width
150dpi 10mm
600dpi 2.5mm
[Countermeasure]
GP Firmware limitation. This problem will be addressed by a future update to GP215 IP
firmware (Ver. 54.xx or higher). The margin will be set to 2.5mm independent of the choosen
scan resolution.
4. Combinations of ROMs
1) GP200/215 Series
GP200/215 IP Ver.45.02 and later
D-CON Ver.35.04 and later
RDF-G1 Ver.6.01
ADF-F1 Ver.6.02
SCSI-C1 Ver.2.01
2) GP55/30 Series
GP55F MMI Ver.50.18 MDC NCORE Ver.90.01
IP Ver.43.01 SCSI-B1 Ver.17.02
D-Con Ver.22.01
GP30F ICORE Ver.32.01 and later
IP Ver.17.01 and later
D-Con Ver.3.01
-2/2-
