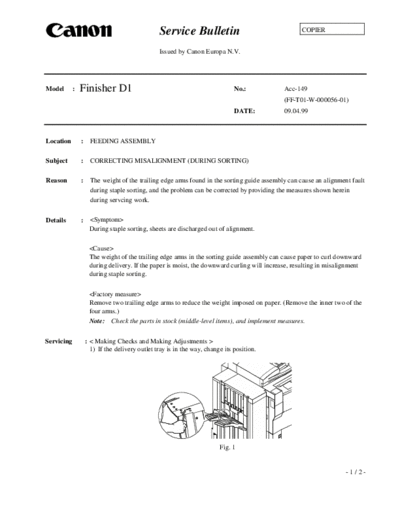

                                                 Service Bulletin                                  COPIER


                                                 Issued by Canon Europa N.V.




Model       :   Finisher D1                                                    No.:          Acc-149
                                                                                             (FF-T01-W-000056-01)
                                                                               DATE:         09.04.99



Location        :     FEEDING ASSEMBLY

Subject         :     CORRECTING MISALIGNMENT (DURING SORTING)

Reason          :     The weight of the trailing edge arms found in the sorting guide assembly can cause an alignment fault
                      during staple sorting, and the problem can be corrected by providing the measures shown herein
                      during servcing work.

Details         :
                     During staple sorting, sheets are discharged out of alignment.


                     The weight of the trailing edge arms in the sorting guide assembly can cause paper to curl downward
                     during delivery. If the paper is moist, the downward curling will increase, resulting in misalignment
                     during staple sorting.


                     Remove two trailing edge arms to reduce the weight imposed on paper. (Remove the inner two of the
                     four arms.)
                     Note: Check the parts in stock (middle-level items), and implement measures.


Servicing           : < Making Checks and Making Adjustments >
                      1) If the delivery outlet tray is in the way, change its position.




                                                                         Fig. 1


                                                                                                                    -1/2-
                                                                                           Acc-149


2) While holding up the swing guide, remove the inner two of the four screws. At this time, take care
   not to drop the screws inside the machine.
3) Of the four trailing edge arms, remove the inner two from the front of the finisher.




     Screws (2 pc.)


                                                                         Remove the inner two of the
                                                                         four trailing edge arms.
                                                     Fig. 2




                                                                                              -2/2-
