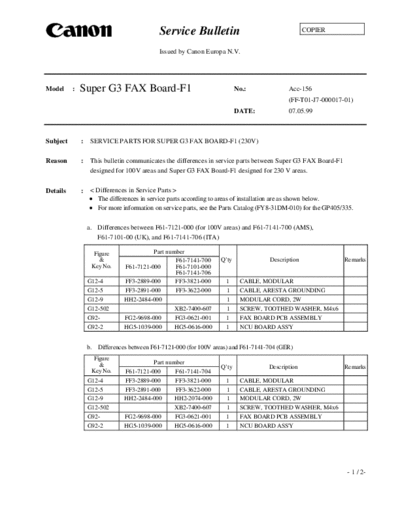

Image preview - the first page of the document
>> Download acc-156 documenatation <<
Text preview - extract from the document
Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : Super G3 FAX Board-F1 No.: Acc-156
(FF-T01-J7-000017-01)
DATE: 07.05.99
Subject : SERVICE PARTS FOR SUPER G3 FAX BOARD-F1 (230V)
Reason : This bulletin communicates the differences in service parts between Super G3 FAX Board-F1
designed for 100V areas and Super G3 FAX Board-F1 designed for 230 V areas.
Details : < Differences in Service Parts >
The differences in service parts according to areas of installation are as shown below.
For more information on service parts, see the Parts Catalog (FY8-31DM-010) for the GP405/335.
a. Differences between F61-7121-000 (for 100V areas) and F61-7141-700 (AMS),
F61-7101-00 (UK), and F61-7141-706 (ITA)
Figure Part number
& F61-7141-700 Q'ty Description Remarks
Key No. F61-7121-000 F61-7101-000
F61-7141-706
G12-4 FF3-2889-000 FF3-3821-000 1 CABLE, MODULAR
G12-5 FF3-2891-000 FF3-3622-000 1 CABLE, ARESTA GROUNDING
G12-9 HH2-2484-000 1 MODULAR CORD, 2W
G12-502 XB2-7400-607 1 SCREW, TOOTHED WASHER, M4x6
G92- FG2-9698-000 FG3-0621-001 1 FAX BOARD PCB ASSEMBLY
G92-2 HG5-1039-000 HG5-0616-000 1 NCU BOARD ASS'Y
b. Differences between F61-7121-000 (for 100V areas) and F61-7141-704 (GER)
Figure
& Part number
Q'ty Description Remarks
Key No. F61-7121-000 F61-7141-704
G12-4 FF3-2889-000 FF3-3821-000 1 CABLE, MODULAR
G12-5 FF3-2891-000 FF3-3622-000 1 CABLE, ARESTA GROUNDING
G12-9 HH2-2484-000 HH2-2074-000 1 MODULAR CORD, 2W
G12-502 XB2-7400-607 1 SCREW, TOOTHED WASHER, M4x6
G92- FG2-9698-000 FG3-0621-001 1 FAX BOARD PCB ASSEMBLY
G92-2 HG5-1039-000 HG5-0616-000 1 NCU BOARD ASS'Y
- 1 / 2-
Acc-156
c. Differences between F61-7121-000 (for 100V areas) and F61-7161-000 (FRN)
Figure
& Part number
Q'ty Description Remarks
Key No. F61-7121-000 F61-7171-000
G12-4 FF3-2889-000 FF3-3821-000 1 CABLE, MODULAR
G12-5 FF3-2891-000 FF3-3622-000 1 CABLE, ARESTA GROUNDING
G12-9 HH2-2484-000 HH2-2219-000 1 MODULAR CORD, 2W
G12-502 XB2-7400-607 1 SCREW, TOOTHED WASHER, M4x6
G92- FG2-9698-000 FG3-0624-000 1 FAX BOARD PCB ASSEMBLY
G92-2 HG5-1039-000 HG5-0886-000 1 NCU BOARD ASS'Y
- 2 / 2-
