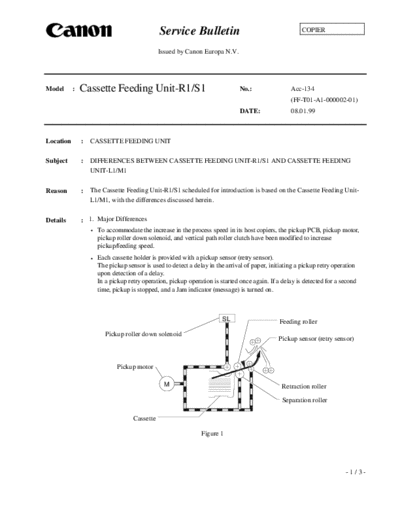

Image preview - the first page of the document
>> Download acc-134 documenatation <<
Text preview - extract from the document
Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : Cassette Feeding Unit-R1/S1 No.: Acc-134
(FF-T01-A1-000002-01)
DATE: 08.01.99
Location : CASSETTE FEEDING UNIT
Subject : DIFFERENCES BETWEEN CASSETTE FEEDING UNIT-R1/S1 AND CASSETTE FEEDING
UNIT-L1/M1
Reason : The Cassette Feeding Unit-R1/S1 scheduled for introduction is based on the Cassette Feeding Unit-
L1/M1, with the differences discussed herein.
Details : 1. Major Differences
To accommodate the increase in the process speed in its host copiers, the pickup PCB, pickup motor,
pickup roller down solenoid, and vertical path roller clutch have been modified to increase
pickup/feeding speed.
Each cassette holder is provided with a pickup sensor (retry sensor).
The pickup sensor is used to detect a delay in the arrival of paper, initiating a pickup retry operation
upon detection of a delay.
In a pickup retry operation, pickup operation is started once again. If a delay is detected for a second
time, pickup is stopped, and a Jam indicator (message) is turned on.
SL Feeding roller
Pickup roller down solenoid
Pickup sensor (retry sensor)
Pickup motor
M Retraction roller
Separation roller
Cassette
Figure 1
-1/3-
Acc-134
2. Serial Number
Cassette Feeding Unit-R1 F24-8411-700 ZSH00001 and later
Cassette Feeding Unit-S1 F24-8421-700 ZSJ00001 and later
3. Differences in Service Parts
Table of Comparison (Parts Used in Common by the Cassette Feeding Unit-R1/S1 and the Parts
Used in Common by Cassette Feeding Unit-L1/M1)
FIGURE L1/M1 R1/S1
& Q'ty Description Remarks
KEY No. Part number Part number
Z11-37 FB4-3798-000 1 GUIDE, PLATE
Z11-12 FF3-1316-000 FF3-3137-000 1 CABLE, CASETTE SIZE
Z20 FG5-6765-000 FG6-0764-000 1 MAIN DRIVE ASSEMBLY
Z20-2 FB3-4139-000 FB4-3799-000 1 MOUNT, MOTOR
Z20-3 FH6-1271-000 FH6-1523-000 1 MOTOR, DC24V
Z40- FG5-6766-000 FG6-0765-000 1 PAPER PICK-UP ASSEMBLY
Z40-1 FB3-2844-000 FB4-2816-000 1 COVER FRAME
Z40A-12 FB4-2817-000 2 MOUNT SENSOR
Z40A-21 FF3-2974-000 1 CABLE, UPPER RETRY SENSOR
Z40A-22 FF3-2975-000 1 CABLE, LOWER RETRY SENSOR
Z91- FG5-7585-000 FG6-0767-000 1 PAPER PICK-UP PCB ASSEMBLY
Z91 VD5-0221-001 VD7-0792-000 1 FUSE:47302.5
Z40-7 FH6-1248-000 FH6-1477-000 1 MOTOR, STEPPING
Z40-8 FH7-5636-000 FH7-5770-000 1 CLUCH, ELECTROMAGNETIC
Z40-9 FH7-5639-000 FH7-5772-000 1 SOLENOID, DC24V
Z40A-30 FH7-7394-000 1 IC, TLP1251 (C5)
Z40-10 FS5-3453-000 FS5-3619-000 1 GEAR PULLEY, 28T/50T
Z40-11 FS5-3454-000 FS5-3620-000 1 GEAR PULLEY, 32T/40T
Z40-14 FS6-0566-000 FS7-0103-000 1 GEAR, 35T
Z40-15 FS6-0567-000 FS7-0104-000 1 GEAR, 24T
Z40-16 FS6-7568-000 FS7-0105-000 1 GEAR, 35T
Z92- FG5-7586-000 FG5-0769-000 1 INTERFACE CABLE
-2/3-
Acc-134
Differences between Cassette Feeding Unit-R1 and Cassette Feeding Unit-L1
FIGURE L1 R1
& Q'ty Description Remarks
KEY No. Part number Part number
Z35 FG5-6768-000 1 VERTICAL PATH ASSEMBLY, LOWER
Z35-2 FB3-4129-000 1 PLATE, GUIDE
Z35-3 FB3-4130-000 1 ROLLER, ATTACHMENT
Z35-4 FB3-4131-000 1 HOLDER, GUIDE
Z35-5 FF5-4908-000 1 BOX, GEAR
Differences between Cassette Feeding Unit-S1 and Cassette Feeding Unit-M1
FIGURE M1 S1
& Q'ty Description Remarks
KEY No. Part number Part number
Z11-39 FB3-4174-000 1 COVER, RIGHT, INNER
Z11-41 FS5-1589-000 1 BUSHING
4. Points to Note for Servicing Work
Service Manual
See the Service Manual for the Cassette Feeding Unit-L1/M1 (FY8-13EC-000).
However, for the consumables and durables, see the table that follows.
The parts shown in the table may require replacement once or more over the period of warranty
because of deterioration or damage. Replace them when they fail by referring to their estimated
lives.
No. Description Part number Q'ty Estimated life (copies) Remarks
1 PICKUP ROLLER FS5-1589-000 1 120,000 Actual copies made
2 FEEDING ROLLER FB3-4174-000 1 120,000 Actual copies made
3 SEPARATION ROLLER FB3-4174-000 1 120,000 Actual copies made
Note: The number in parentheses represent the Cassette Feeding Unit-S1.
Parts Catalog
See the Parts Catalog for the Cassette Feeding Unit-L1/M1/R1/S1 (FY8-31CK-010).
-3/3-
