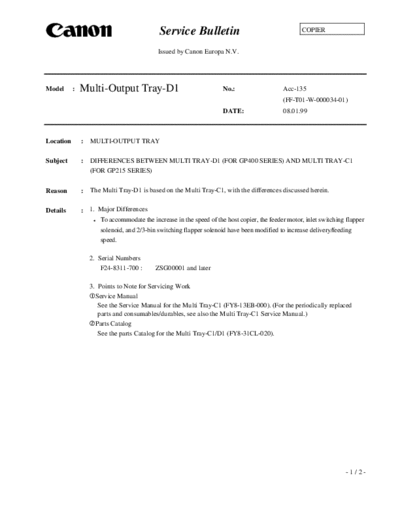

Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : Multi-Output Tray-D1 No.: Acc-135
(FF-T01-W-000034-01)
DATE: 08.01.99
Location : MULTI-OUTPUT TRAY
Subject : DIFFERENCES BETWEEN MULTI TRAY-D1 (FOR GP400 SERIES) AND MULTI TRAY-C1
(FOR GP215 SERIES)
Reason : The Multi Tray-D1 is based on the Multi Tray-C1, with the differences discussed herein.
Details : 1. Major Differences
To accommodate the increase in the speed of the host copier, the feeder motor, inlet switching flapper
solenoid, and 2/3-bin switching flapper solenoid have been modified to increase delivery/feeding
speed.
2. Serial Numbers
F24-8311-700 : ZSG00001 and later
3. Points to Note for Servicing Work
Service Manual
See the Service Manual for the Multi Tray-C1 (FY8-13EB-000). (For the periodically replaced
parts and consumables/durables, see also the Multi Tray-C1 Service Manual.)
Parts Catalog
See the parts Catalog for the Multi Tray-C1/D1 (FY8-31CL-020).
-1/2-
Acc-135
4. Difference in Service Parts
FIGURE C1 (GP215 series) D1 (GP400 series)
& Q'ty Description Remarks
KEY No. Part number Part number
Q30-47 FE9-0083-000 1 HOLDER, BIN, FRONT
Q10-11 FB4-3789-000 1 SPACER, TRAY
Q10-14 FB4-3796-000 1 DAMPER, TRAY
Q30-6 FB3-3780-000 FB4-3780-000 1 GUIDE
Q30-8 FB3-3782-000 FB4-3781-000 2 LINK, SOKENOID
Q30-17 FB3-3804-000 FB4-3785-000 1 GRIP, GUIDE
Q30-18 FF5-4839-000 FF5-7209-000 1 DEFLECTOR, 1
Q30-18A FB3-3787-000 FB4-3783-000 1 SHEET, DEFLECTOR
Q30-20 FF5-4840-000 FF5-7214-000 1 MOUNT, MAGNET, FRONT
Q30-22 FF5-4846-000 FF5-7211-000 1 PLATE, UPPER
Q30-23 FF5-4847-000 FF5-7215-000 1 MOUNT, MAGNET, REAR
Q30-14 FF5-5643-000 FF5-7210-000 11 PLATE
Q30-24 FH6-1273-000 FH6-1478-000 1 MOTOR, STEPPING
Q30-25 FH7-5665-000 FH7-5831-000 2 SOLENOID
Q30-28 FS5-2317-000 FS6-2824-000 2 SPRING, TENSION
Q30-35 FS6-2388-000 1 SPRING, COMPRESSION
Q30-37 RB1-3130-000 1 PIECE, DRG, PRESSURE
Q30-19 XF9-0570-000 XF9-0660-000 1 BELT, TIMING, 218T
