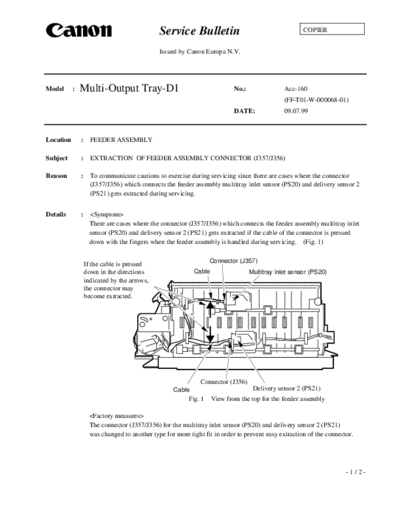

Image preview - the first page of the document
>> Download acc-160 documenatation <<
Text preview - extract from the document
Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : Multi-Output Tray-D1 No.: Acc-160
(FF-T01-W-000068-01)
DATE: 09.07.99
Location : FEEDER ASSEMBLY
Subject : EXTRACTION OF FEEDER ASSEMBLY CONNECTOR (J357/J356)
Reason : To communicate cautions to exercise during servicing since there are cases where the connector
(J357/J356) which connects the feeder assembly multitray inlet sensor (PS20) and delivery sensor 2
(PS21) gets extracted during servicing.
Details :
There are cases where the connector (J357/J356) which connects the feeder assembly multitray inlet
sensor (PS20) and delivery sensor 2 (PS21) gets extracted if the cable of the connector is pressed
down with the fingers when the feeder assembly is handled during servicing. (Fig. 1)
Connector (J357)
If the cable is pressed
down in the directions Cable Multitray inlet sensor (PS20)
indicated by the arrows,
the connector may
become extracted.
Connector (J356)
Cable Delivery sensor 2 (PS21)
Fig. 1 View from the top for the feeder assembly
The connector (J357/J356) for the multitray inlet sensor (PS20) and delivery sensor 2 (PS21)
was changed to another type for more tight fit in order to prevent easy extraction of the connector.
-1/2-
Acc-160
Servicing : When the feeder assembly is handled during servicing, do not press down on the cable of the connector
(J357/J356) which connects the multitray inlet sensor (PS20) and delivery sensor 2 (PS21).
Also, the way of holding the multitray 3/D1 when removing it from the packing box as shown in Fig. 2
is recommended.
Fig. 2 Way of holding the multitray 3/D1 when removing it
from the packing box
Service Parts :
Inter- P.C.
-- -- -- -- -- -- -- -- -
No. Description Part number Q'ty change-
ability
1 Old PHOTO-INTERRUPTER FH7-7394-000
3 0 Q30A-38
03
No Yes
New PHOTO-INTERRUPTER FH7-7312-000
Affected machines:
ZSG01671 and later
-2/2-
