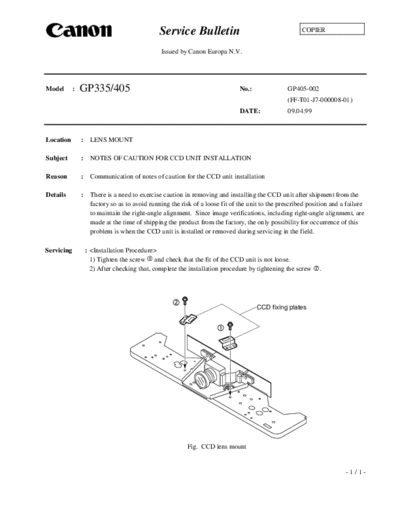

Image preview - the first page of the document
>> Download gp405-002 documenatation <<
Text preview - extract from the document
Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : GP335/405 No.: GP405-002
(FF-T01-J7-000008-01)
DATE: 09.04.99
Location : LENS MOUNT
Subject : NOTES OF CAUTION FOR CCD UNIT INSTALLATION
Reason : Communication of notes of caution for the CCD unit installation
Details : There is a need to exercise caution in removing and installing the CCD unit after shipment from the
factory so as to avoid running the risk of a loose fit of the unit to the prescribed position and a failure
to maintain the right-angle alignment. Since image verifications, including right-angle alignment, are
made at the time of shipping the product from the factory, the only possibility for occurrence of this
problem is when the CCD unit is installed or removed during servicing in the field.
Servicing :
1) Tighten the screw and check that the fit of the CCD unit is not loose.
2) After checking that, complete the installation procedure by tightening the screw .
CCD fixing plates
Fig. CCD lens mount
-1/1-
