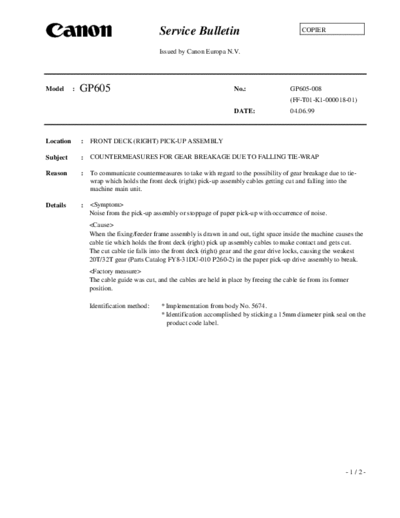

Image preview - the first page of the document
>> Download gp605-08 documenatation <<
Text preview - extract from the document
Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : GP605 No.: GP605-008
(FF-T01-K1-000018-01)
DATE: 04.06.99
Location : FRONT DECK (RIGHT) PICK-UP ASSEMBLY
Subject : COUNTERMEASURES FOR GEAR BREAKAGE DUE TO FALLING TIE-WRAP
Reason : To communicate countermeasures to take with regard to the possibility of gear breakage due to tie-
wrap which holds the front deck (right) pick-up assembly cables getting cut and falling into the
machine main unit.
Details :
Noise from the pick-up assembly or stoppage of paper pick-up with occurrence of noise.
When the fixing/feeder frame assembly is drawn in and out, tight space inside the machine causes the
cable tie which holds the front deck (right) pick up assembly cables to make contact and gets cut.
The cut cable tie falls into the front deck (right) gear and the gear drive locks, causing the weakest
20T/32T gear (Parts Catalog FY8-31DU-010 P260-2) in the paper pick-up drive assembly to break.
The cable guide was cut, and the cables are held in place by freeing the cable tie from its former
position.
Identification method: * Implementation from body No. 5674.
* Identification accomplished by sticking a 15mm diameter pink seal on the
product code label.
-1/2-
GP605-008
Servicing : < Procedure >
1) Remove the front deck (right) pick-up
assembly. Front deck (right) pick-up assembly
(See Service Manual FY8-13FE-000 P7-53.)
2) Cut the cable tie (Fig.1).
3) Accomplish reattachment by following the
procedure in reverse.
Caution: Even with users who are using the
optional side paper deck, there is no
need to remove the side paper deck.
Procedure for removing the right (upper) door
which is done instead of removing the side paper
deck. Cut the cable tie.
i) Move the side paper deck to the position as
far as it can slide away from the machine. Fig. 1
ii) Open the multi feed tray assembly widely.
iii) Release the right (upper) door from the
supporting pin by lifting the door up while
opening it to a certain degree.
Affected machines:
PEL00102 and later NLE02549 and later PLE00049 and later
QLE00272 and later RLE00040 and later SLE00411 and later
TLE00160 and later ULE00537 and later
-2/2-
