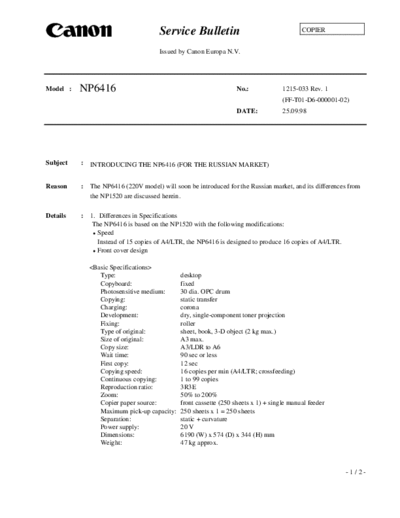

Image preview - the first page of the document
>> Download 6416 documenatation <<
Text preview - extract from the document
Service Bulletin COPIER
Issued by Canon Europa N.V.
Model : NP6416 No.: 1215-033 Rev. 1
(FF-T01-D6-000001-02)
DATE: 25.09.98
Subject : INTRODUCING THE NP6416 (FOR THE RUSSIAN MARKET)
Reason : The NP6416 (220V model) will soon be introduced for the Russian market, and its differences from
the NP1520 are discussed herein.
Details : 1. Differences in Specifications
The NP6416 is based on the NP1520 with the following modifications:
Speed
Instead of 15 copies of A4/LTR, the NP6416 is designed to produce 16 copies of A4/LTR.
Front cover design
Type: desktop
Copyboard: fixed
Photosensitive medium: 30 dia. OPC drum
Copying: static transfer
Charging: corona
Development: dry, single-component toner projection
Fixing: roller
Type of original: sheet, book, 3-D object (2 kg max.)
Size of original: A3 max.
Copy size: A3/LDR to A6
Wait time: 90 sec or less
First copy: 12 sec
Copying speed: 16 copies per min (A4/LTR; crossfeeding)
Continuous copying: 1 to 99 copies
Reproduction ratio: 3R3E
Zoom: 50% to 200%
Copier paper source: front cassette (250 sheets x 1) + single manual feeder
Maximum pick-up capacity: 250 sheets x 1 = 250 sheets
Separation: static + curvature
Power supply: 20 V
Dimensions: 6190 (W) x 574 (D) x 344 (H) mm
Weight: 47 kg approx.
-1/2-
1215-033 Rev. 1
2. Serial Numbers
NP6416 (220V): F12-6643 PHC00001 and later
3. Related Products
F13-0931 ADF-A1 (inch/AB)
F22-0916 ADF-A1 KIT (220V)
F22-6207 MS-A1
F22-6219 1520 MS KIT (220V)
F31-6505 NP FL CASSETTE-D1
F31-6506 NP FL CASSETTE-D1
F31-6515 NP FL CASSETTE-D1
F31-6525 NP FL CASSETTE-D1
F43-1601 NP1215 DRUM UNIT
F41-5902 NP-G1 TONER
F22-7203 CONTROL CARD-IV
Points to Note for Servicing :
For all other servicing information, see the NP1215 Service Manual (FY8-1377-000),
Service Handbook (FY8-2340-000) and Service Bulletin 1215-024 Rev. 2.
For service parts, see the table that follows; for service parts not found in the table, see the NP1215
Parts Catalog (FY8-3177-030).
FIGURE Part number Part number
&
KEY No. NP1520 NP6416 Q'ty Description Remarks
101-1 FA5-2064-000 FC2-5620-00K 1 RAIL, FRONT
105-9 FA9-1785-000 FC2-5613-00K 2 PIN HINGE, FRONT PANEL
101-7 FF2-4667-000 FF3-1677-00K 1 COVER, INNER
104-29 FH7-1525-000 FH6-1660-00K 1 MAIN MOTOR, 220V/50Hz (AC16W)
325- FG2-1883-000 FG2-8411-00K 1 MANUAL FEED TRAY ASSEMBLY
325-7 FA6-6872-000 FC2-5618-00K 1 GUIDE, PAPER, MANUAL FEED
101-10 FA5-2046-000 FC2-5611-00K 1 MOUNT, SWITCH
101-8 FH7-6149-000 FH7-6080-000 1 SWITCH, MAIN
101-18 FA5-2051-000 FC2-5612-00K 1 PLATE, COUNTER, MOUNTING
FC2-8612-00K
930- FG1-7413-000 FG3-0204-00K 1 DC CONTROLLER PCB ASSEMBLY
930-Q301 FH4-1047-000 FH4-3731-00K 1 IC, UPD78C4G-093-36
FH4-3731-000
930-X301 WK2-0290-000 FH6-3981-00K 1 OSCILLATOR, QUARTZ
100-14 FG9-3095-000 FG3-0205-00K 1 DOOR, FRONT
100-13 FH6-0484-000 FH6-0766-00K 1 CONTROL PANEL UNIT
-2/2-
