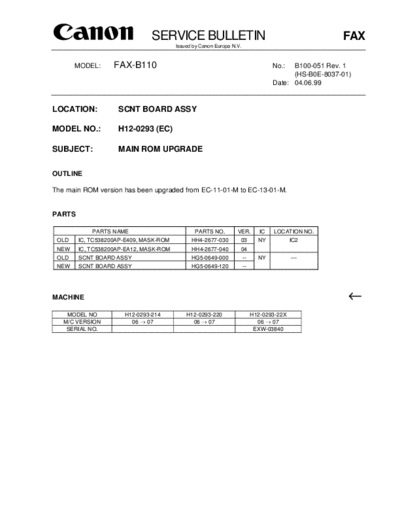

Image preview - the first page of the document
>> Download B100_060 documenatation <<
Text preview - extract from the document
SERVICE BULLETIN FAX
Issued by Canon Europa N.V.
MODEL: FAX-B110 No.: B100-051 Rev. 1
(HS-B0E-8037-01)
Date: 04.06.99
LOCATION: SCNT BOARD ASSY
MODEL NO.: H12-0293 (EC)
SUBJECT: MAIN ROM UPGRADE
OUTLINE
The main ROM version has been upgraded from EC-11-01-M to EC-13-01-M.
PARTS
PARTS NAME PARTS NO. VER. IC LOCATION NO.
OLD IC, TC538200AP-E409, MASK-ROM HH4-2677-030 03 NY IC2
NEW IC, TC538200AP-EA12, MASK-ROM HH4-2677-040 04
OLD SCNT BOARD ASSY HG5-0649-000 -- NY ---
NEW SCNT BOARD ASSY HG5-0649-120 --
MACHINE
MODEL NO H12-0293-214 H12-0293-220 H12-0293-22X
M/C VERSION 06 07 06 07 06 07
SERIAL NO. EXW-03840
FAX -2- B100-051 Rev. 1
