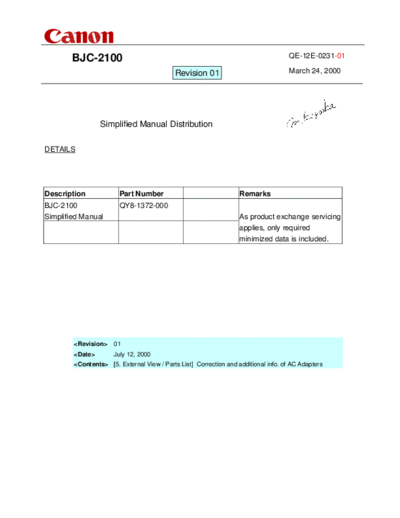

Image preview - the first page of the document
>> Download Canon BJC2100simpl documenatation <<
Text preview - extract from the document
BJC-2100 QE-12E-0231-01
Revision 01 March 24, 2000
Simplified Manual Distribution
DETAILS
Description Part Number Remarks
BJC-2100 QY8-1372-000
Simplified Manual As product exchange servicing
applies, only required
minimized data is included.
01
July 12, 2000
[5. External View / Parts List] Correction and additional info. of AC Adapters
BJC-2100/2100SP
Simplified Manual
Part number: QY8-1372-000
1 Product / Option / Comsumable list
2 Specifications
3 Error code list
4 Service mode
(Test print, EEPROM reset....)
5 External view / Parts list
6 H/W troubleshooting flowchart
7 Special Service Information
Attachment Service Test Print
BPQA-11
Rev 01 2000.3/22
Rev 02 2000.7/12
1. Product / Option / Comsumable lists
1.1 Products
Product Name Product Code Sales territory Remarks
Canon Bubble Jet Printer Q30-3330-720 CCSI
BJC-2100 Q30-3330-721 CANADA
Q30-3330-722 LATIN(LV)
Q30-3330-723 LATIN(HV)
Q30-3330-724 ARG
Q30-3330-730 EUROPE
Q30-3330-731 GERMAN
Q30-3330-732 FRANCE
Q30-3330-780 U.K.
Canon Bubble Jet Printer Q30-3331-710 JAPAN
BJ F210
Canon Bubble Jet Printer Q30-3340-740 AUSTRALIA
BJC-2100SP Q30-3340-733 ASIA(HV)
Q30-3340-734 CHN
Q30-3340-750 HK
Q30-3340-760 KRN
Q30-3340-723 TWN
1.2 Options
Product Name Product Code Remarks
Canon BJ Cartridge Container Q70-3130
SB-21
Canon Color Image Scanner Cartridge Q70-3530
IS-22
Canon BJ Scanning Holder Q70-3640 Scanning Holder for IS-22 (A4)
SH-101 A4/LTR
Canon BJ Scanning Holder Q70-3650 Scanning Holder for IS-22 (A3)
SH-101 A3/LDR
1.3 Consumables
Product Name Product Code Remarks
Canon BJ Cartridge F45-0561 BJ Cartridge (BK)
BC-20
Canon Color BJ Cartridge F45-1301 BJ Cartridge (Regular Color)
BC-21e
Canon Color BJ Cartridge F45-1311 BJ Cartridge (Photo Color)
BC-22e Photo
Canon Color BJ Cartridge F45-1101 BJ Cartridge (Fluorescent Color)
BC-29F
Canon Ink Cartridge F47-0731 Ink tank for BC-21e (BK)
BCI-21 Black
Canon Ink Cartridge F47-0741 Ink Tank for BC-21e (Color)
BCI-21 Color
2. Specifications
2.1 Specifications (Note) Difference from the based BJC-2000/2000SP is written in RED
DeskTop serial color bubble jet printer
Paper feeding method Auto Sheed Feeding
Resolution 720 dpi X 360 dpi
Printing Speed
HQ Color 1.5ppm (Color throughput pattern)
Mono. 4ppm (Monochrome throughput pattern)
HS Color 2ppm (Color throughput pattern)
Mono. 5ppm (Monochrome throughput pattern)
Printing Direction Switching unidirectional
( Printing direction automatically changes according to
the print data/ print mode/ installed cartridged type. )
Print width 203.2mm (8inch)
Interface IEEE1284 compatible 8-bit parallel / USB
Stacking Capacity of sheet feeder
Plain paper Max. 5mm stack (Approx. 50 sheets with 75g/m 2)
LGL size Max. 10 sheets
Envelopes Max. 5 sheets
Transparencies Max. 20 sheets
Back Print Film Max. 10 sheets
Glossy photo paper Max. 1 sheet
Glossy film Max. 1 sheet
Fabric Max. 1 sheet
T-shirt transfer Max. 1 sheet
Banner paper Max. 1 sheet
Scanning document Max. 1 sheet
Detection functiones
Paper out Available
Paper width None
Waste ink amount Available
Presence of BJ cartridge Available
Distinction of cartridge Available
Ink out None
Distinction of scanner Available
Mismatch BJ/scanner Available
Noise 45 dB (Sound pressure level ISO9296)
Environmental requirement
During operation Temp. 5 to 35 deg. C (41 to 95 deg. F)
Humidity 10% to 90%RH (no condensation)
Non operation Temp. 0 to 35 deg. C (32 to 95 deg. F)
Humidity 5% to 90%RH (no condensation)
Power supply
Input voltage/Frequency AC100V/120V 50/60Hz (LV) Japan,USA,Canada
AC220/240V 50Hz (HV) Europe,Asia
Power consumption 18W
Stand-by status 2W
External dimension
W/O paper tray/support 370(W) X 191(D) X 164(H)
W paper tray/support 370(W) X 461(D) X 241(H)
Weight 2.4kg (W/O BJ cartridge and option)
Applicable safety standards
Printer FCC,IC,CE Mark,TWN-EMC,C-Tick,VCCI
Safety UL,CUL,CB Report,GS,CE Mark,FIMKO,DENTORI,AS,PSB,CCIB,KRN-DENTORI
2.2 Product life
Whichever of the following comes first
-5 years
-Color printing 3000 pages
-Black printing 10000 pages
3. Error Code List
Error will be displayed on the host computer monitor.
The host computer should be set to ECP or Nibble mode and use the BJ Status Monitor on Win95.
Error Code Error indication Error condition
1000 The printer is out of paper. Push the RESET botton to paper feed.
1200 Front cover is opened. Close the front cover.
1300 Paper JAM occurrs. Pull up the paper.
1400 BJ cartridge is not installed. Install the BJ cartridge and close the front cover.
1440 Incorrect cartridge is installed.. Install the correct BJ cartridge and close the front cover.
5000 Home position error H/W fail Replace the printer.
5100 Carriage control error H/W fail Replace the printer.
5200 Head temperature error H/W fail Replace the BJ cartridge.
5400 Printer temperature error H/W fail Replace the printer.
5600 No cartridge while printing H/W fail Replace the printer.
5B00 Waste ink full H/W fail Replace the printer.
5C00 Purging operation error H/W fail Replace the printer.
6100 ROM error H/W fail Replace the printer.
6300 RAM error H/W fail Replace the printer.
5210 Scanner cartridge error H/W fail Replace the scanner cartridge.
6800 EEPROM error H/W fail Replace the printer.
4. Service Mode
Function Procedure Remarks
Cleaninng the BJ cartridge Press and hold the RESET botton for 2 seconds or more Cleaning time
( while the AC plug is plugged in) :Approx.20seconds.)
Test print Print nozzle check pattern
1) Nozzle pattern Double click the RESET button. BC-20/21e/22e/29F
( while the AC plug is plugged in)
2) Service test print
Control ROM Version See *1 service test print' Needs BC-20
Pages of each Cartridge Print sample : See *3
Waste ink Amount
Destination setting
EEPROM Reset See *2 EEPROM reset / Destination setting
(Reset waste ink amount)
Destination setting See *2 EEPROM reset / Destination setting
(Japan/SP/Others)
*1 Service test print
-1 Without the cartridge installed, connect the plug of the AC adapter to the AC outlet
while holding down the RESET button.
-2 Release the RESET button, press it down again within 5 seconds and release it.
-3 Open the front cover and install the BC-20 (black BJ cartridge)
-4 Hold down the RESET button for 2 seconds or more and release it.
-5 Close the front cover.
-6 The printer starts service test printing.
*2 EEPROM reset / Destination setting
-1 Without the cartridge installed, connect the plug of the AC adapter to the AC outlet
while holding down the RESET button.
-2 Release the RESET button, press it down again within 5 seconds and release it.
-3 Hold down the RESET button for 2 seconds or more and release it.
-4 < EEPROM Reset > < Destination setting >
Hold down the RESET button -Japan Press the RESET button once.
for 2 secs or more. -Others Press the RESET button twice
-SP Press the RESET button 3 times
After the button is pressed, the carriage will move same time
as the number of times the RESET button is pressed.
*3 Print sample of 'Service test print'
You can check the EEPROM setting by 'Service test print'.
Control ROM Version
Amount of waste ink
ROM Ver X.XX BC-20 Lost Ink XX.X% Page count-->BK XXXX PB XXXX CL XXXX VC XXXX LD XXXX VL XXXX SC XXXX
CG ROM Ver X.XX BJYYYYY Wiping yyyy Manual purge yyyy Dry time : OFF Purge Flag : yyy Door : close
Destination setting Page counts of
Japan BJ F210 SC IS-22(Scanner)
SP BJC-2100SP VL BC-22e
Others BJC-2100 VC BC-21e
BK BC-20
5. External View / Parts List
