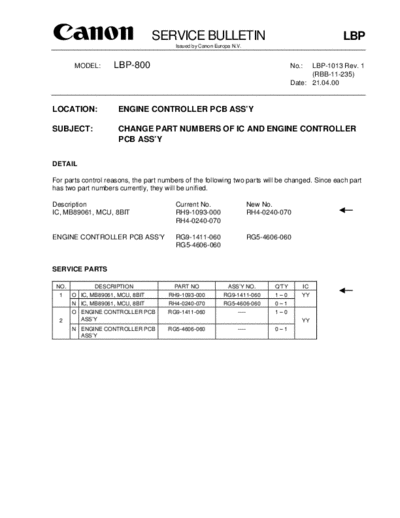

                                  SERVICE BULLETIN                                                   LBP
                                         Issued by Canon Europa N.V.



       MODEL:       LBP-800                                                            No.:  LBP-1013 Rev. 1
                                                                                             (RBB-11-235)
                                                                                       Date: 21.04.00


LOCATION:             ENGINE CONTROLLER PCB ASS'Y

SUBJECT:              CHANGE PART NUMBERS OF IC AND ENGINE CONTROLLER
                      PCB ASS'Y


DETAIL

For parts control reasons, the part numbers of the following two parts will be changed. Since each part
has two part numbers currently, they will be unified.

Description                              Current No.                     New No.
IC, MB89061, MCU, 8BIT                   RH9-1093-000                    RH4-0240-070
                                         RH4-0240-070

ENGINE CONTROLLER PCB ASS'Y              RG9-1411-060                    RG5-4606-060
                                         RG5-4606-060


SERVICE PARTS

 NO.          DESCRIPTION               PART NO               ASS'Y NO.         Q'TY          IC
  1    O IC, MB89061, MCU, 8BIT       RH9-1093-000          RG9-1411-060        1
