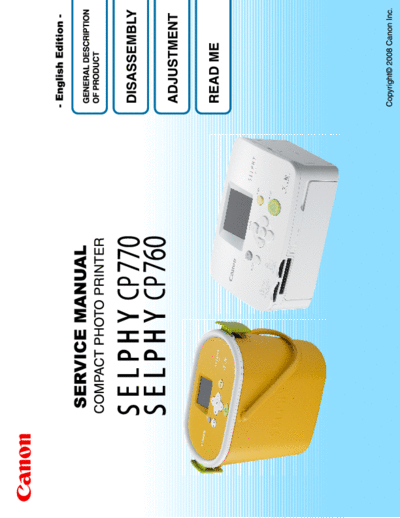

Image preview - the first page of the document



>> Download Canon_SELPHY-CP770_CP760_Photo_Printer (1) documenatation <<

Text preview - extract from the document

                                 GENERAL DESCRIPTION
                                           OF PRODUCT




Trademarks:
Canon Inc.'s trademark, logos, product names, service marks and those trademark, logos, product
names, service marks licensed to Canon Inc. by any of its affiliate or subsidiary are registered or
unregistered marks of Canon Inc. or such affiliate or subsidiary in Japan and/or other countries.
Adobe, the Adobe logo, Acrobat, the Acrobat logo and Reader are either registered trademarks or
trademarks of Adobe Systems Incorporated in the United States of America and/or other countries.
All other trademarks, product names, service marks are generally either registered or unregistered
marks of their respective owners.

Copyright:
All copyrights in the content of this Service Manual are owned or controlled by Canon Inc. You are
not permitted to copy, reproduce, download, modify, adapt or translate in any way the content of this
Service Manual for any purpose other than the purpose contemplated herein without prior written
consent of Canon Inc.
      CONTENTS
1 Overview
  1-1 Summary of Main Features .................................................................................................................................. 1
     1-2      Comparison of Main Features .............................................................................................................................. 4


2 Exterior
  2-1 Exterior Photos ..................................................................................................................................................... 6
     2-2      5-View Diagram ................................................................................................................................................... 7
     2-3      Nomenclature ..................................................................................................................................................... 10


3 Specifications
  3-1 Product Specifications........................................................................................................................................ 12
     3-2      System Diagram ................................................................................................................................................. 16
     3-3      Functions Available in Each Printing Mode ...................................................................................................... 17


4 Accessory Specifications
  4-1 Paper Cassettes ................................................................................................................................................... 18
     4-2      Ink Cassettes....................................................................................................................................................... 19
     4-3      Battery Pack NB-CP2L ...................................................................................................................................... 19
     4-4      Compact Power Adapter CA-CP200 (white) ..................................................................................................... 20
     4-5      Bluetooth Unit BU-30 ........................................................................................................................................ 20
     4-6      Accessory Compatibility .................................................................................................................................... 21
1 Overview


  SELPHY-CP770 is the flagship model of the new CP series that incorporates the concept of a
  design for everyday use and a storage solution, targeting the user group of young families.
  The SELPHY-CP760 succeeds the CP series design. In order to reach a wide range of users,
  efforts have been made to improve the user friendliness, and functions have been added.

    SELPHY
    -CP770



    SELPHY
    -CP760




1-1 Summary of Main Features
     Text highlighted in red: New features introduced with the SELPHY-CP770/CP760
     Text highlighted in blue: Differences from the SELPHY-CP750/CP740



                                           High Image Quality
  Dye-sublimation system provides exceptional gradations
  High resolution of 300
