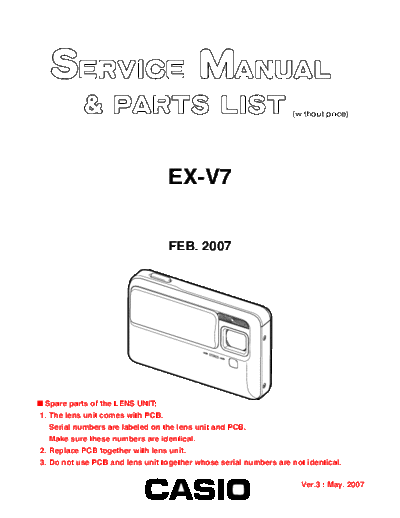

Image preview - the first page of the document



>> Download CASIO_EX_V7 documenatation <<

Text preview - extract from the document

                                                                   (without price)




                                  EX-V7

                                  FEB. 2007




I Spare parts of the LENS UNIT;
1. The lens unit comes with PCB.
   Serial numbers are labeled on the lens unit and PCB.
   Make sure these numbers are identical.
2. Replace PCB together with lens unit.
3. Do not use PCB and lens unit together whose serial numbers are not identical.

                                                                     Ver.3 : May. 2007
  INDEX
                                                        R
                                                                 CONTENTS

SPECIFICATIONS ....................................................................................................................................... 1
BLOCK DIAGRAM ...................................................................................................................................... 5
TEST MODE ................................................................................................................................................ 6
PROGRAM VERSION UPGRADING .......................................................................................................... 7
   1. To update the firmware version ..................................................................................................... 7
   2. How to restore the firmware ........................................................................................................... 8
   3. To install the firmware .................................................................................................................... 9
ADJ TOOL ................................................................................................................................................. 10
   1. Preparation ..................................................................................................................................... 10
   2. How to use ADJ Tool when replacing Lens unit ........................................................................ 12
   3. How to use ADJ Tool when replacing MAIN PCB ...................................................................... 13
DATA BACKUP OF THE COMPENSATION OF THE HAND MOVEMENT ............................................. 14
VCOM DC ADJUSTMENT ........................................................................................................................ 15
CURRENT CONSUMPTION ..................................................................................................................... 18
THE COUNTERMEASURE FOR "SYSTEM ERROR" ............................................................................. 18
RESETTING THE PLACE OF DESTINATION .......................................................................................... 19
AF ASSIST LAMP ADJUSTMENT ........................................................................................................... 20
DISASSEMBLY ......................................................................................................................................... 21
ASSEMBLY ............................................................................................................................................... 31
EXPLODED VIEW ..................................................................................................................................... 40
PARTS LIST .............................................................................................................................................. 41
PRINTED CIRCUIT BOARD ..................................................................................................................... 43
                                                 SPECIFICATIONS
Image Files Format                Snapshots: JPEG (Exif Version 2.2); DCF (Design Rule for Camera File System) 1.0 standard;
                                              DPOF compliant
                                  Movies:     H.264/AVC MOV format (Motion JPEG AVI format when the image quality setting is "LP")
                                  Audio:      WAV
Recording Media                   Built-in Memory 11.6 MB, SDHC Memory Card, SD Memory Card, MMC (MultiMediaCard),
                                  MMCplus (MultiMediaCardplus)

Approximate Memory Capacity and File sizes
